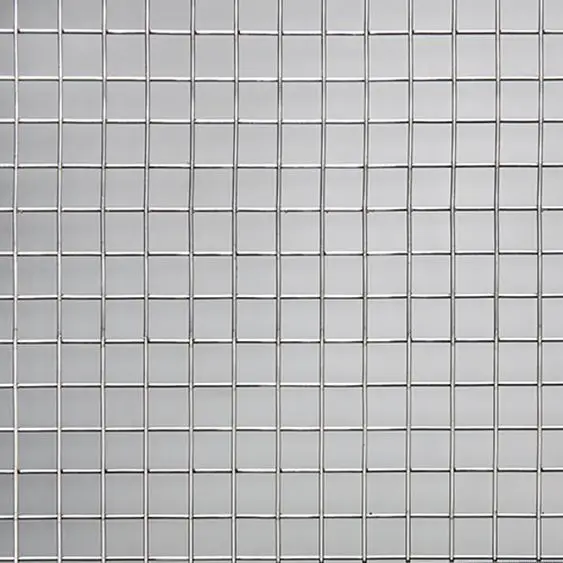

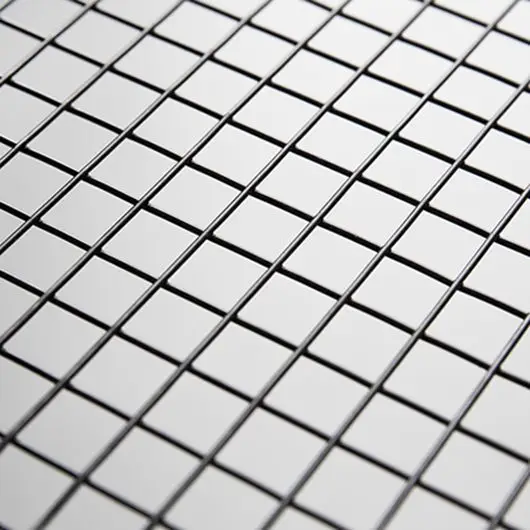

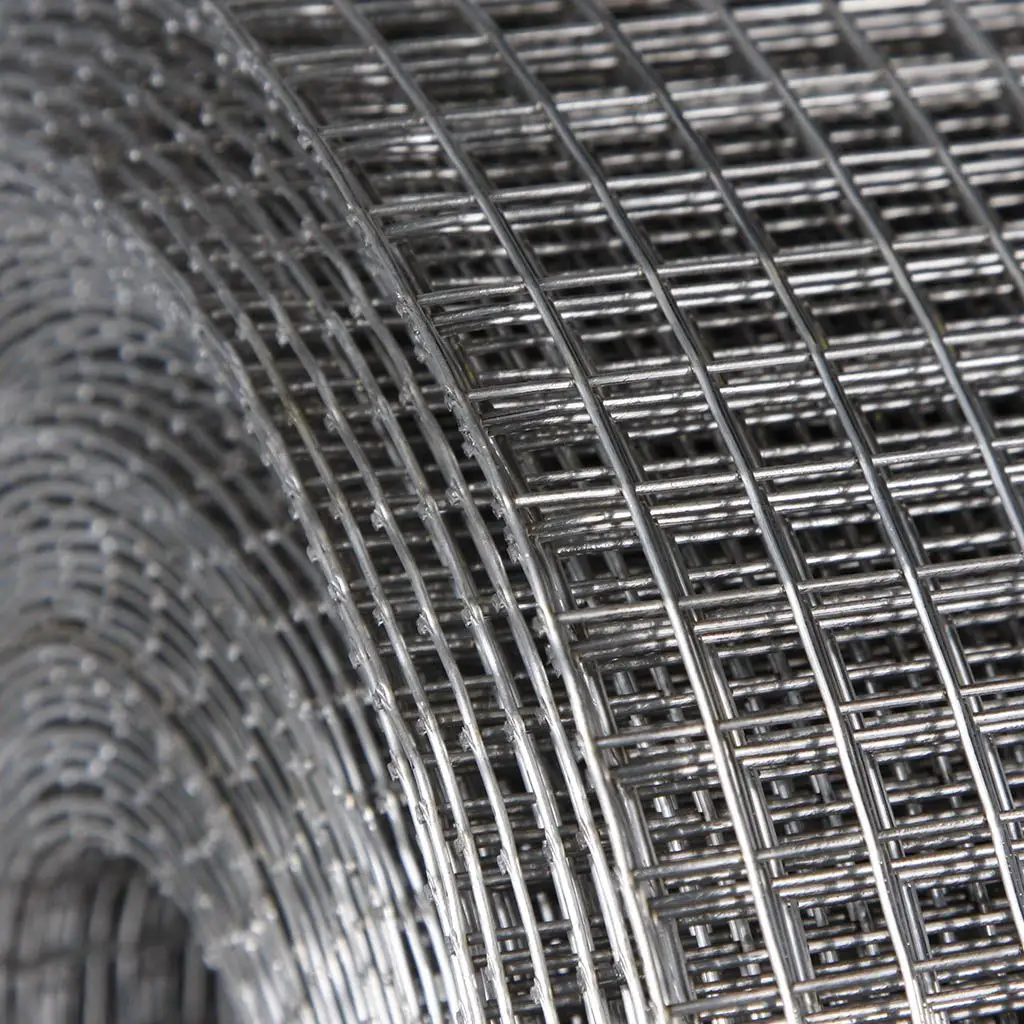

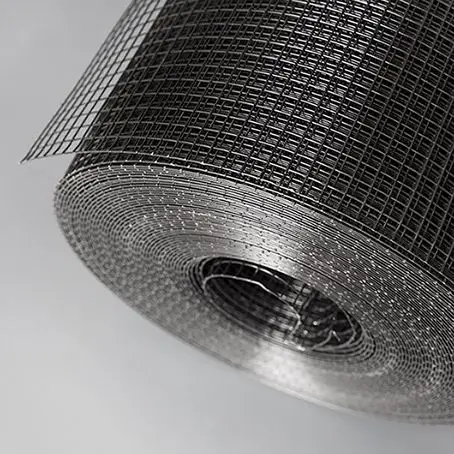

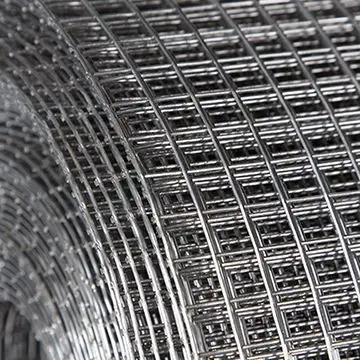

Stainless Steel Welded Wire Mesh Rolls

Stainless Steel Welded Wire Mesh Rolls

General purpose and custom made Stainless steel welded wire mesh rolls. Available in Grade 304 and Grade 316 (Grade 316 is commonly known as marine grade stainless steel).

Stainless Steel Welded Wire Mesh Rolls
Length 30m rolls and up to 30m in multiples of 5m
Mesh 6.35mm to 50.8mm
Wire Diameter 0.8mm to 2.5mm

Contact Us

Print Table

Stocked Stainless Steel Welded Wire Mesh 30 Metre Rolls

Product CodeMesh mmWire Diameter mmWidth mmApprox Weight KgGradeData Sheet LinkRequest a Quote
SSWM 06.35 0.63 01966.35 x 6.350.63190.54.5316PDF
SSWM 06.35 0.63 09146.35 x 6.350.6391522304PDF
SSWM 06.35 0.63 09166.35 x 6.350.6391522316PDF
SSWM 06.35 0.63 12246.35 x 6.350.63122029304PDF
SSWM 06.35 0.63 12266.35 x 6.350.63122029316PDF
SSWM 06.35 0.8 12246.35 x 6.350.80122046304PDF
SSWM 06.35 0.8 12266.35 x 6.350.80122046316PDF
SSWM 09.50 0.8 12269.50 x 9.500.80122030316PDF
SSWM 09.50 1.0 12249.50 x 9.501.00122048304PDF
SSWM 09.50 1.0 12269.50 x 9.501.00122048316PDF
SSWM 09.50 1.0 15249.50 x 9.501.00152560304PDF
SSWM 09.50 1.0 15269.50 x 9.501.00152560316PDF
SSWM 11.00 0.8 122411.0 x 11.00.80122027304PDF
SSWM 11.00 0.8 122611.0 x 11.00.80122027316PDF
SSWM 12.7 1.2 091412.7 x 12.71.2091539304PDF
SSWM 12.7 1.2 091612.7 x 12.71.2091539316PDF
SSWM 12.7 1.2 122412.7 x 12.71.20122052304PDF
SSWM 12.7 1.2 122612.7 x 12.71.20122052316PDF
SSWM 12.7 1.2 152412.7 x 12.71.20152564304PDF
SSWM 12.7 1.2 152612.7 x 12.71.20152564316PDF
SSWM 12.7 1.6 091412.7 x 12.71.6091569304PDF
SSWM 12.7 1.6 122412.7 x 12.71.60122092304PDF
SSWM 12.7 1.6 122612.7 x 12.71.60122092316PDF
SSWM 12.80 1.2 122412.7 x 25.41.20122039304PDF
SSWM 12.80 1.2 122612.7 x 25.41.20122039316PDF
SSWM 19.05 1.6 122619.05 x 19.051.60122062316PDF
SSWM 19.05 2.0 122619.05 x 19.052.00122095316PDF
SSWM 25.4 1.0 122625.4 x 25.41.00122018316PDF
SSWM 25.4 1.2 091625.4 x 25.41.2091520316PDF
SSWM 25.4 1.2 122625.4 x 25.41.20122026316PDF
SSWM 25.4 1.2 152625.4 x 25.41.20152532316PDF
SSWM 25.4 1.6 122425.4 x 25.41.60122046304PDF
SSWM 25.4 1.6 122625.4 x 25.41.60122046316PDF
SSWM 25.4 2.0 122425.4 x 25.42.00122072304PDF
SSWM 25.4 2.0 122625.4 x 25.42.00122072316PDF
SSWM 38.1 2.0 122638.1 x 38.12.00122048316PDF
SSWM 50.8 2.0 122650.8 x 50.82.0122037316PDF

Stainless Steel Welded Rolls More Information

Welded Wire Mesh Vs Woven Wire Mesh
Welded wire mesh generally has larger openings than woven wire mesh. The wires are welded at each intersection giving the mesh strength and the capability of maintaining its integrity under stress.  The popularity of welded mesh is increasing as it can be cut and formed with relative ease.

Welded Mesh terminology
Mesh- The distance between two adjacent parallel wires, measured from centre to centre of the wires

Diameter-Thickness of the wire

Stocked and custom made stainless steel welded wire mesh rolls

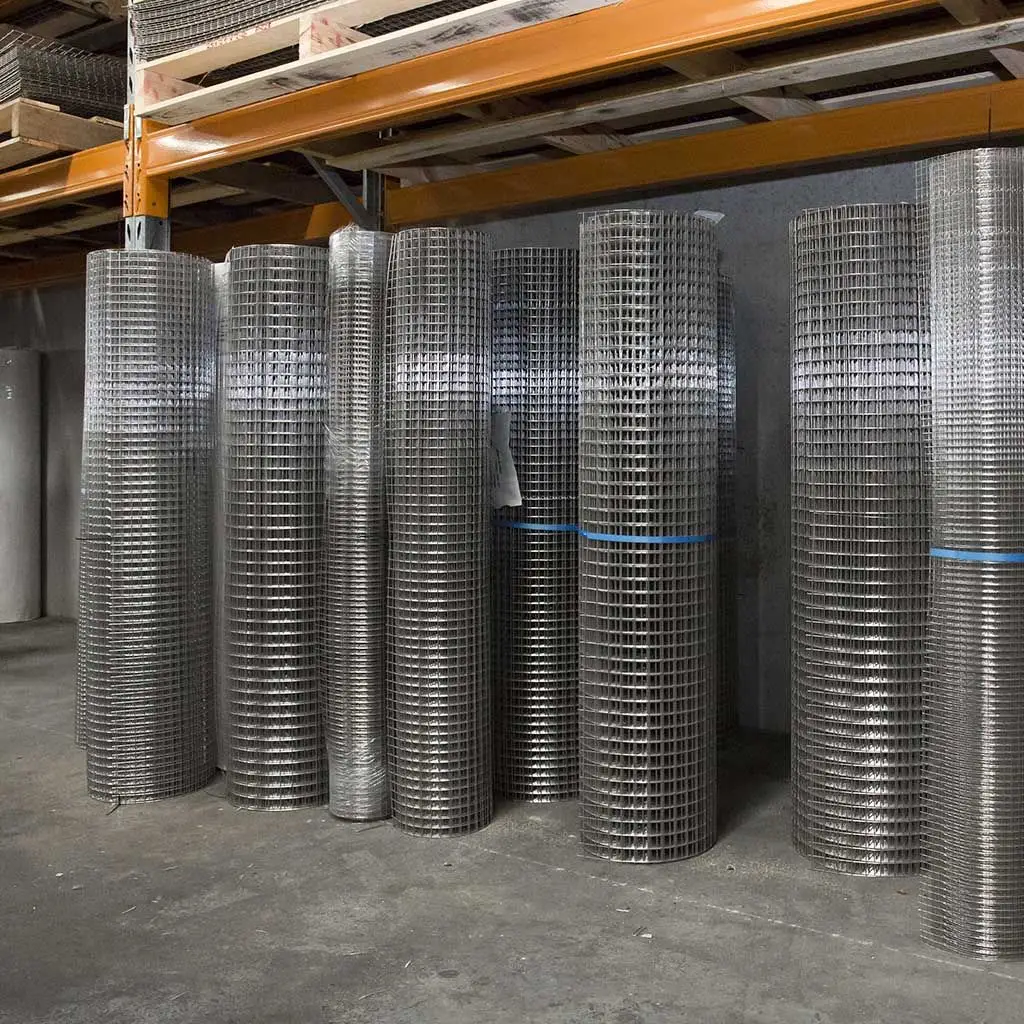

We stock an extensive range of stainless steel welded mesh rolls. Our roll widths are 1220mm to 1524mm with a length of 30m. The wire diameter starts at 0.8mm to 2.5mm and the mesh from 6.35mm to 50.8mm.  For further information on our stocked stainless steel welded mesh rolls refer to the tables;
Stainless Steel Welded Rolls

For requirements that are not listed please contact us with your enquiry.

Stainless Steel
Welded Mesh Calculations

  • Mesh mm
  • Diam mm
  • Open Area %
  • Weight Squ m
