Common Applications

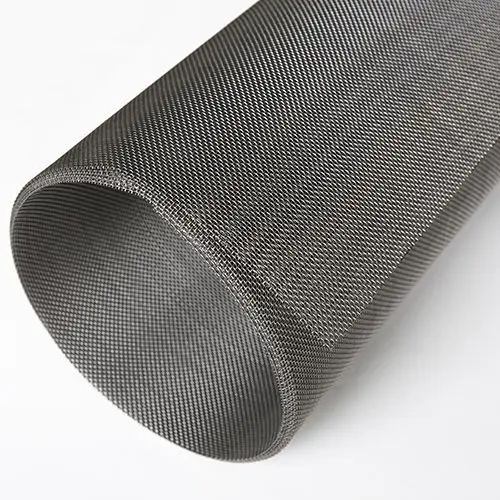

Rolls
Self Supporting RIGID

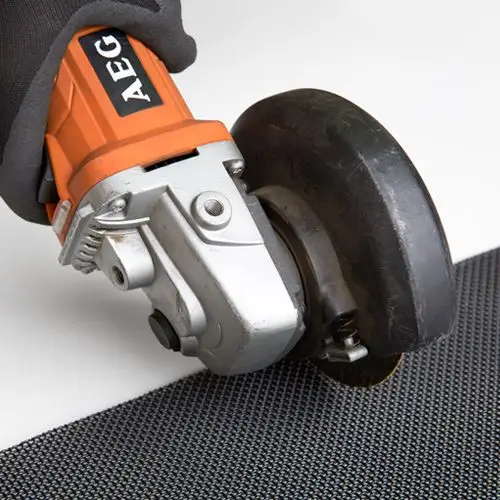

Cut with Grinder
Aperture 1.64mm – Wire Diam 0.90mm – Approx % Open Area 42%
In stock
For sheet or multiple roll orders contact [email protected] or 1300 304 316 as order is too large for courier.
1.64 mm
Aperture
0.9 mm
Wire Diameter
Stocked
Stock Status
Finish
Uncoated Mill Finish

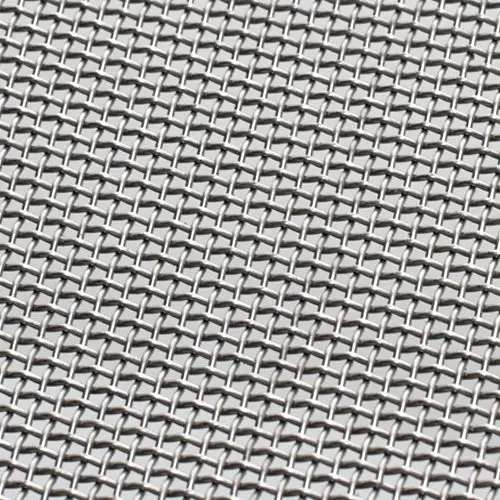

Plain Weave
Weave Type
4.16 kg/m2
Approx Kg/m2
42%
Approx % open area*
* Pre-black power coat finish.
HIGHER TENSILE WOVEN WIRE
Stainless Steel Wire
ASTM – A580
Woven Wire Cloth
ASTM – E2016-15
Neutral Salt Spray
AS 2331 1.3.1 2001
Aperture Dimensions
AS 3959
Non Flammable Material
SD 1530.3
Impact Resistant
AS 5309
University of Southern Queensland (USQ)
Report No: Project 1007952
CSIRO
QAI Laboratories
Report No FCO-3313
ISO Accredited 17025
Report No
At Stainless Steel Wire & Mesh, we get a lot of commonly asked questions about our range of products and their many applications.
This FAQ page lists those frequently asked questions. If your question is not answered here, please do not hesitate to contact us for help.
To cover any gap that is greater than 3mm with a product that is:
Before commencing your installation you should consult a Fire Protection Australia (FPA) & Bushfire Planning and Design (BPAD) Accredited Practitioner and contact your local council and fire authority to ensure you are meeting all the building and AS3959-2018 requirements.
