stainless steel Architectural Mesh

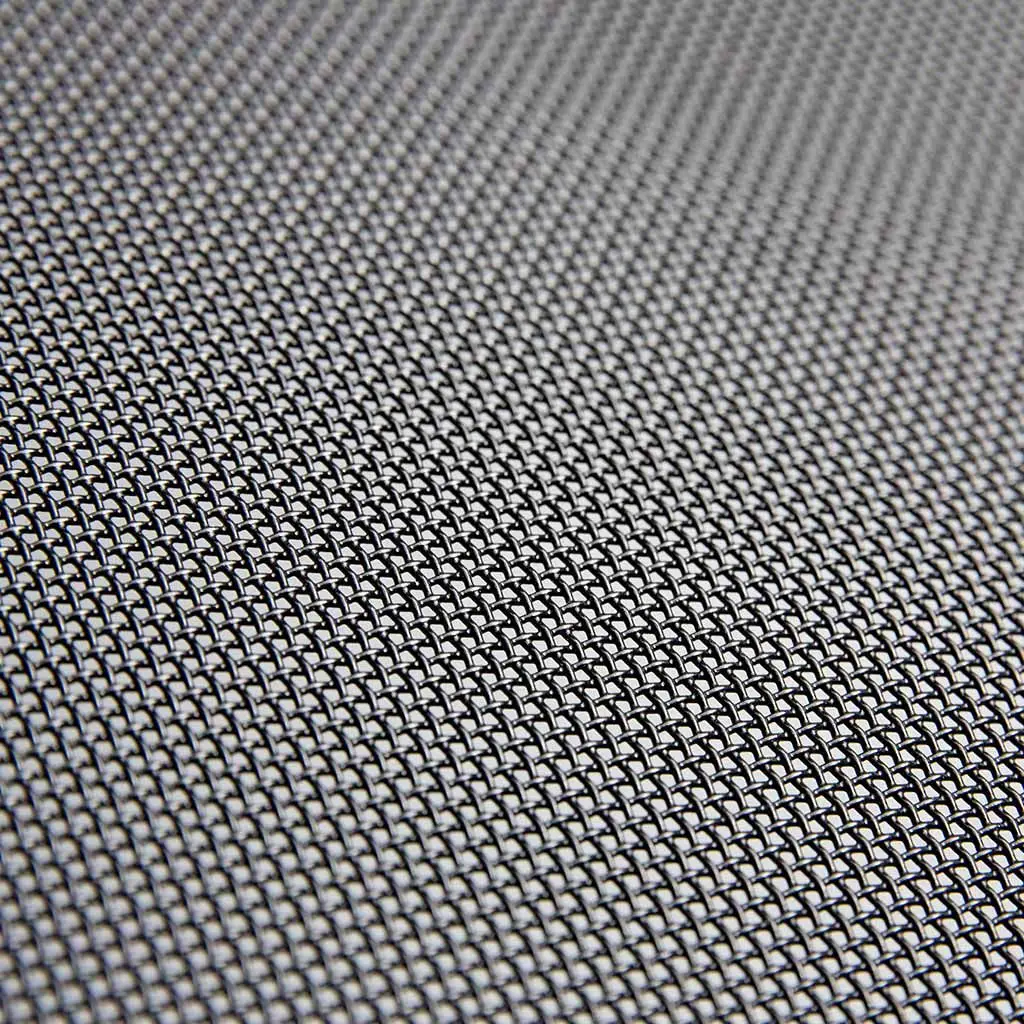

Architectural Mesh

Stainless steel woven wire mesh is ideal for many architectural applications, both internally and externally. By selecting stainless steel you will utilise its numerous benefits including:

✔ Aesthetic appeal
✔ Long term performance
✔ Minimal maintenance
✔ Strength
✔ Life cycle costing
✔ Low environmental impact

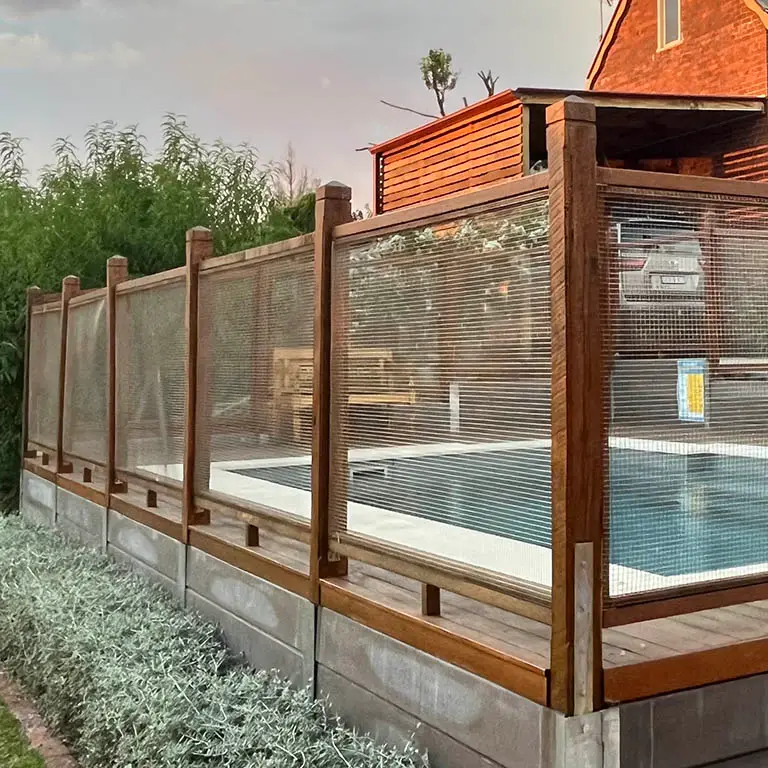

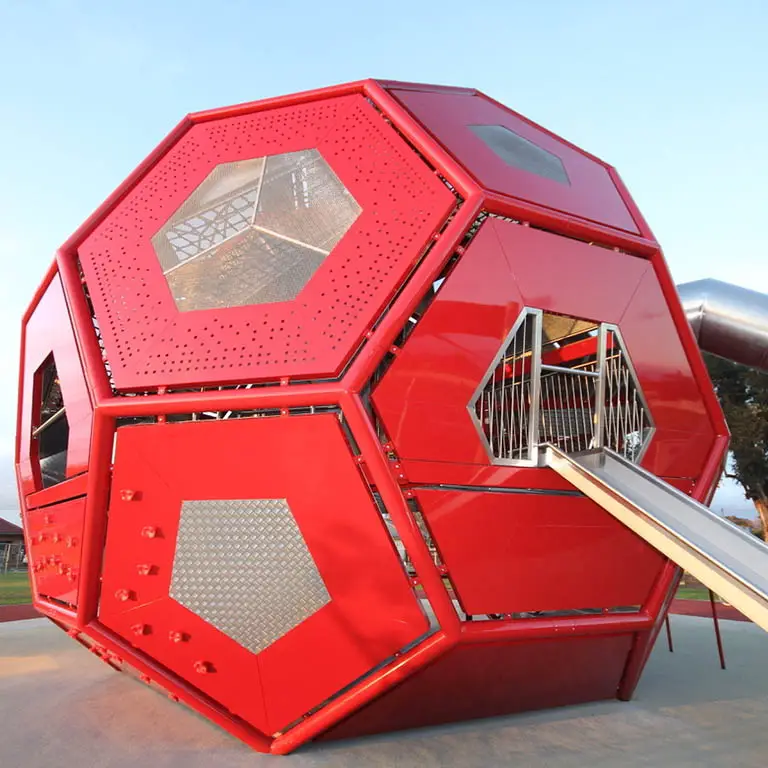

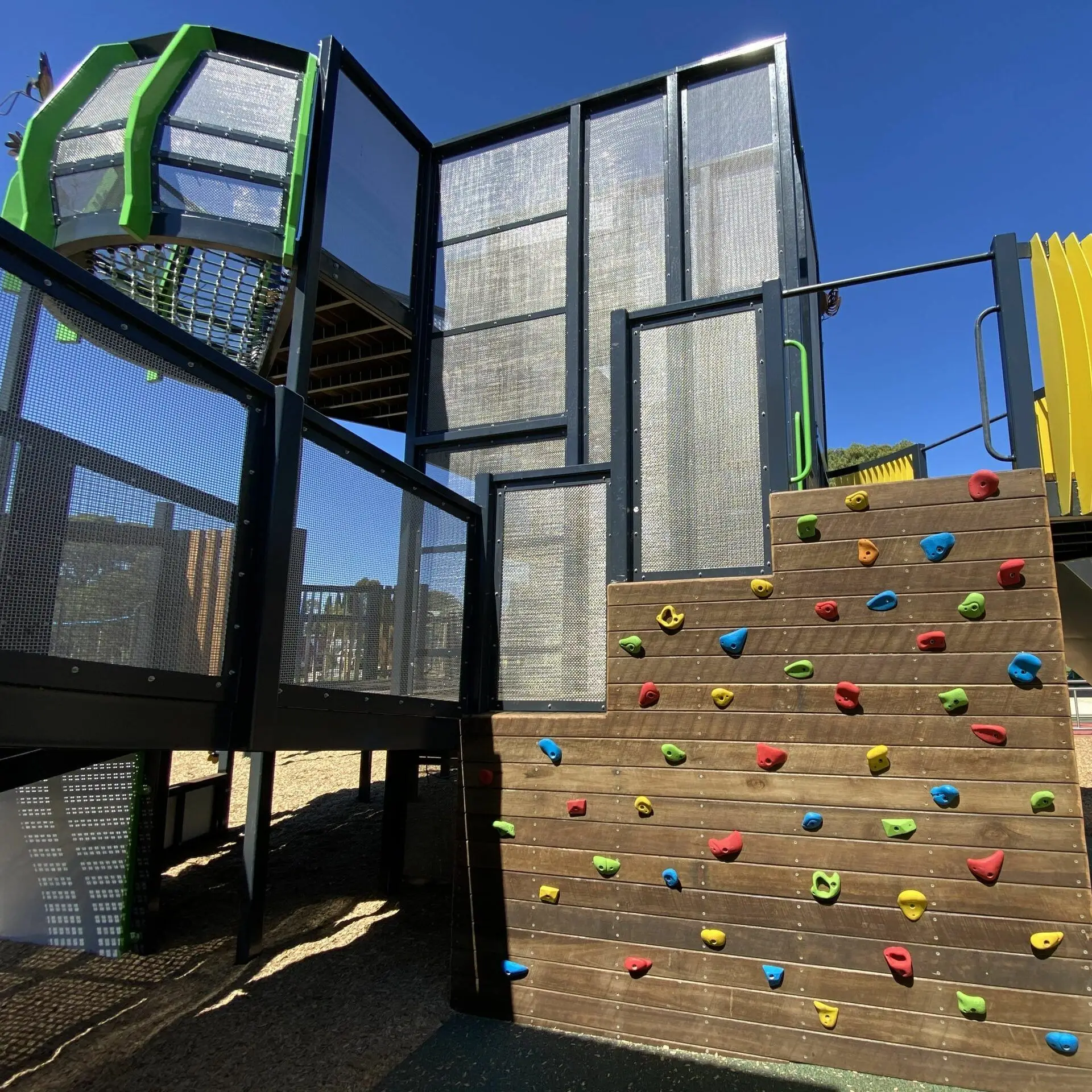

Architectural applications include external mesh facades, ceilings, solar shading, mesh balustrades, decorative screens, partitions, wall cladding, joinery & cabinetry.

Stocked Product Specifications ready for same day despatch
SSWM stock an extensive range of stainless steel mesh for- refer to the following stock guides:

  • Ballustrading / Screening
  • Joinery / Cabinetry

For more information on determining woven mesh, terminology, formulas and the different types of weaves see more information or our latest post on our blog ‘The Ins and Outs of Woven Mesh‘.

Minimum Sale Quantities
915mm, 1220mm & 1245mm width  – 2 lineal meters. Then sold in multiples of 1 metre.
1550mm width  – 10 lineal meters. Then sold in multiples of 10 metres.

Category:
For multiple roll orders please contact [email protected] or 1300 305 148 as order is too large for courier.
Australia’s largest stockist of stainless steel wire & mesh

Australia’s largest stockist of stainless steel wire & mesh
We have the largest and most comprehensive Australian stock holding of stainless steel wire and mesh in our purpose laid out warehouse with over: 130 Stainless Steel Woven Mesh specifications in 2m, 5m, 10m & 30m length x varying width rolls

Testing / Standards

Testing / Standards
Our Stainless Steel Woven Mesh is manufactured to ASTM E2016-15 ‘Standard Specification for Industrial Woven Wire Cloth’.

Design & Install Considerations

Design & Install Considerations
Practical information for your consideration.

Architectural Mesh

Architectural Mesh
If the mesh is being used externally for aesthetic purposes, to minimise tea staining please evaluate if the mesh is to be pickled, passivated and electropolished.

Care & Maintenance

Care & Maintenance
Stainless steel is a low maintenance material, but not maintenance free. Refer to our CARE page for further information.

Speed to Market

Speed to Market
Same day despatch when your order is received by 9am for Australia wide delivery.

Contact Us

Commercial Grade Stocked Stainless Steel Woven Mesh 30m Rolls Regularly used for Architectural Applications

Product CodeMeshSWGAperture mmWire Diameter mmWidth mmApprox Weight KgGradeApprox % OpenTechnical Data SheetRequest a Quote
SSWO 01030 124616241.030.5612459631642PDF
SSWO 01030 155416241.030.56155012030442PDF
SSWO 01560 124412241.560.5612457230454PDF
SSWO 01580 12468161.581.60124539231625PDF
SSWO 01640 091410201.640.9091511430442PDF
SSWO 01640 124410201.640.90124515530442PDF
SSWO 01640 124610201.640.90124515531642PDF
SSWO 01640 150410201.640.90150018730442PDF
SSWO 01640 155410201.640.90155019330442PDF
SSWO 01640 155610201.640.90155019331642PDF
SSWO 01975 12448181.9751.20124522130439PDF
SSWO 01975 15548181.9751.20155027530439PDF
SSWO 02280 12448202.280.90124512430451PDF
SSWO 02280 15548202.280.90155015430451PDF
SSWO 02470 12448222.470.7112457730460PDF
SSWO 02470 15548222.470.7115509630460PDF
SSWO 02630 12466162.631.60124529531639PDF
SSWO 03030 12446183.031.20124516630451PDF
SSWO 03030 12466183.031.20124516631651PDF
SSWO 04750 12444164.751.60124519630456PDF
SSWO 04750 12464164.751.60124519631656PDF
SSWO 04750 15544164.751.60155024430456PDF
SSWO 06470 1244 LC3146.472.00124523030458PDF
SSWO 06470 1554 LC3146.472.00155028630458PDF
SSWO 06870 1244 LC3166.871.60124514730466PDF
SSWO 06870 1246 LC3166.871.60124514731666PDF
SSWO 06870 1554 LC3166.871.60155014730466PDF
SSWO 09500 1244 IC2.2149.52.00124516530466PDF
SSWO 09500 1246 IC2.2149.52.00124513531666PDF
SSWO 10200 1246 LC21210.22.50124523931665PDF
SSWO 10700 1244 IC21410.72.00124515330471PDF
SSWO 10700 1246 IC21410.72.00124515331671PDF
SSWO 10700 1554 IC21410.72.00155019130471PDF
SSWO 11100 1244 IC21611.11.6012459830476PDF
SSWO 11100 1246 IC21611.11.6012459831676PDF
SSWO 12880 1246 LC1.61012.883.00124527631666PDF
SSWO 16500 1246 IC3/41216.52.50124516031675PDF
SSWO 22250 1244 IC11022.253.15124519030477PDF
SSWO 22250 1246 IC11022.253.15124519031677PDF
SSWO 22250 1836 IC11022.253.15183027931677PDF



 Stocked Black Stainless Steel Woven Mesh Sheets Regularly used for Architectural Applications

Product CodeMeshSWGNominal Aperture mm Wire Diam mm Approx % Open Area  Width mmLength GradeFinishTechnical Data SheetRequest A Quote
SSWOBS 01510 0750 200611211.510.80437502000304 / 316Black Powder CoatPDF
SSWOBS 01510 0750 240611211.510.80437502400304 / 316Black Powder CoatPDF
SSWOBS 01510 0900 200611211.510.80439002000304 / 316Black Powder CoatPDF
SSWOBS 01510 0900 240611211.510.80439002400304 / 316Black Powder CoatPDF
SSWOBS 01510 1200 200611211.510.804312002000304 / 316Black Powder CoatPDF
SSWOBS 01510 1200 240611211.510.804312002400304 / 316Black Powder CoatPDF
SSWOBS 01510 1500 200611211.510.804315002000304 / 316Black Powder CoatPDF
SSWOBS 01510 1500 240611211.510.804315002400304 / 316Black Powder CoatPDF

Minimum Sale Quantities
1245mm wide – 2 lineal meters
1550mm wide – 10 lineal meters (only sold in multiples of 10 lineal meters)

Cutting
Please place your woven wire orders that require cutting by 11:00am for same day cut and pick up by 2:30pm.

Print Table

Mesh is Tested / Manufactured to:

ASTM International (formerly American Society for Testing and Materials)
✔ ASTM E2016-15 ‘Standard Specification for Industrial Woven Wire Cloth’
Manufactured to
Technical Data Sheets
✔ Refer to SSWM Technical Data Sheets for further Standards / Testing information and which of the above are relevant to the mesh that you have selected
    No Associated Application.

Stainless Steel Architecural Mesh - More Information

Stainless Woven Mesh Terminology

Mesh – The number of openings per lineal inch.

SWG – Standard wire gauge

Aperture- The distance between two adjacent wires

Diameter- The thickness of the wire before weaving

Pitch- The distance between the middle point of two adjacent wires or the sum of the aperture width and the wire diameter.

% Open Area- The ratio of the area of the aperture to the area of the mesh expressed in percentage terms

Weft- All wires running across the cloth as woven

Stainless Woven Mesh Formulas

Aperture

Calculating the aperture

  1. Count of a convenient number of apertures (N)
  2. Measure the length covered by the N apertures (L)
  3. Measure the wire diameter (D)
  4. The average aperture (A)

calculating-woven-wire-mesh-aperture

Working example of calculating the aperture of 6/20 woven wire mesh

  1. Number of apertures counted N = 6
  2. Length covered by apertures centre to centre L = 25.4mm
  3. Diameter of wire D = 0.9mm
  4. Aperture

calculating-aperture

The woven wire is identified as 3.33mm aperture / 0.9mm diameter



Mesh Count
calculating-mesh-count-1

Percentage Open Area
calculating-open-area

The mesh has a 62% open area



Micron Conversion



Micron (micrometer) is a unit of measure, in which usually only fine mesh under 1mm is referred to. A micron us a thousandth of a millimetre.

In this example 325/48.5, 0.043mm aperture, 0.035mm diameter is used.

micron-conversion-3

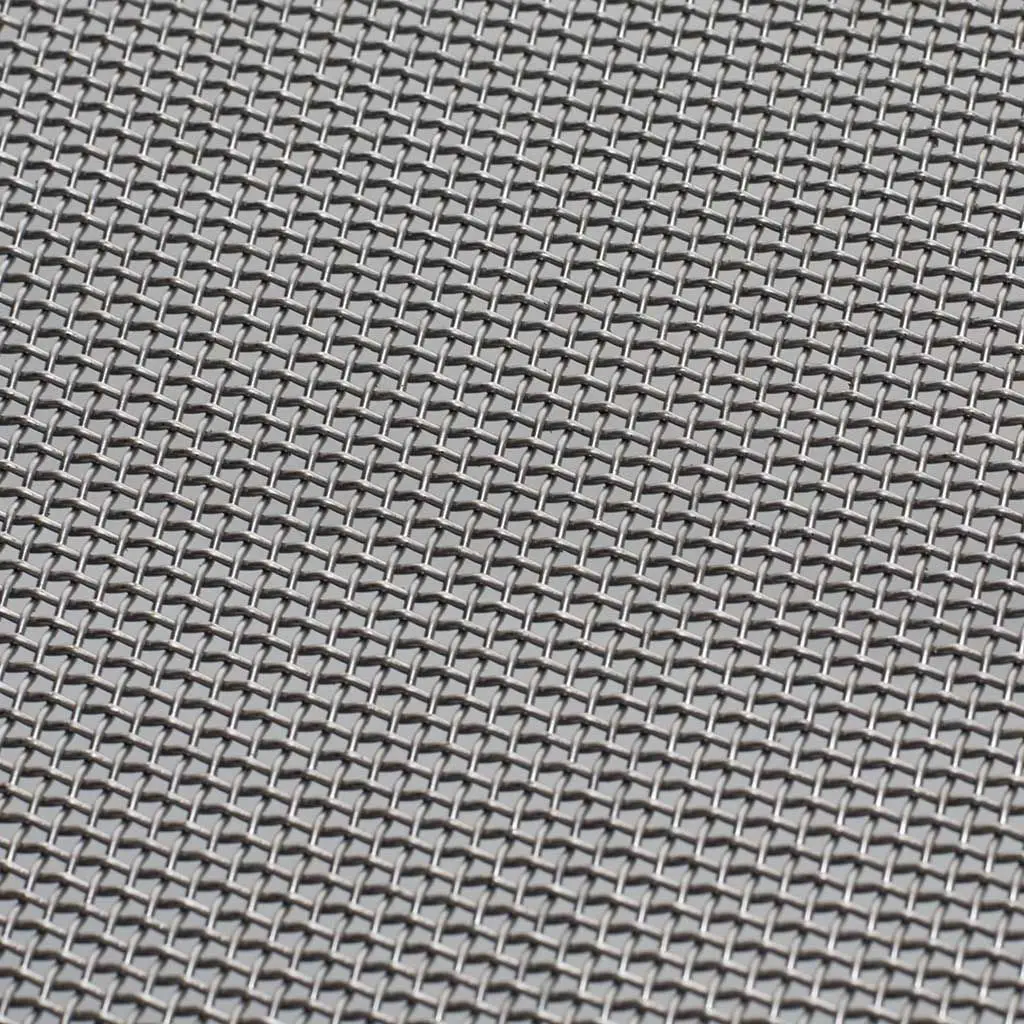

Plain Weave



The most common and simplest weaves.Each warp wire (wire running parallel to the length of the cloth) passes alternatively over and under the wires running transversly through the cloth at 90 degree angles.

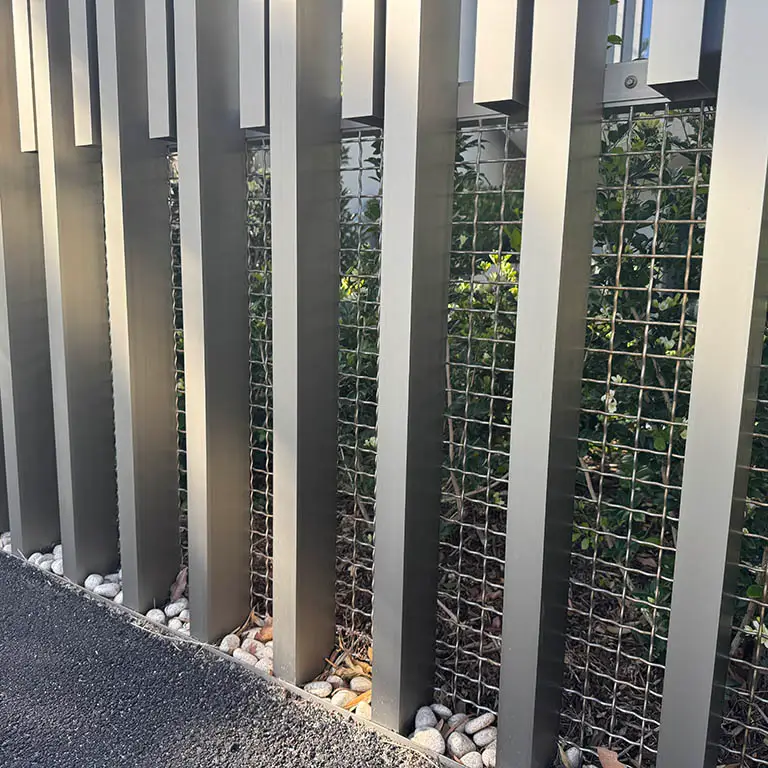

Intercrimp Weave



Has extra crimps in warp and weft wires between intersections.

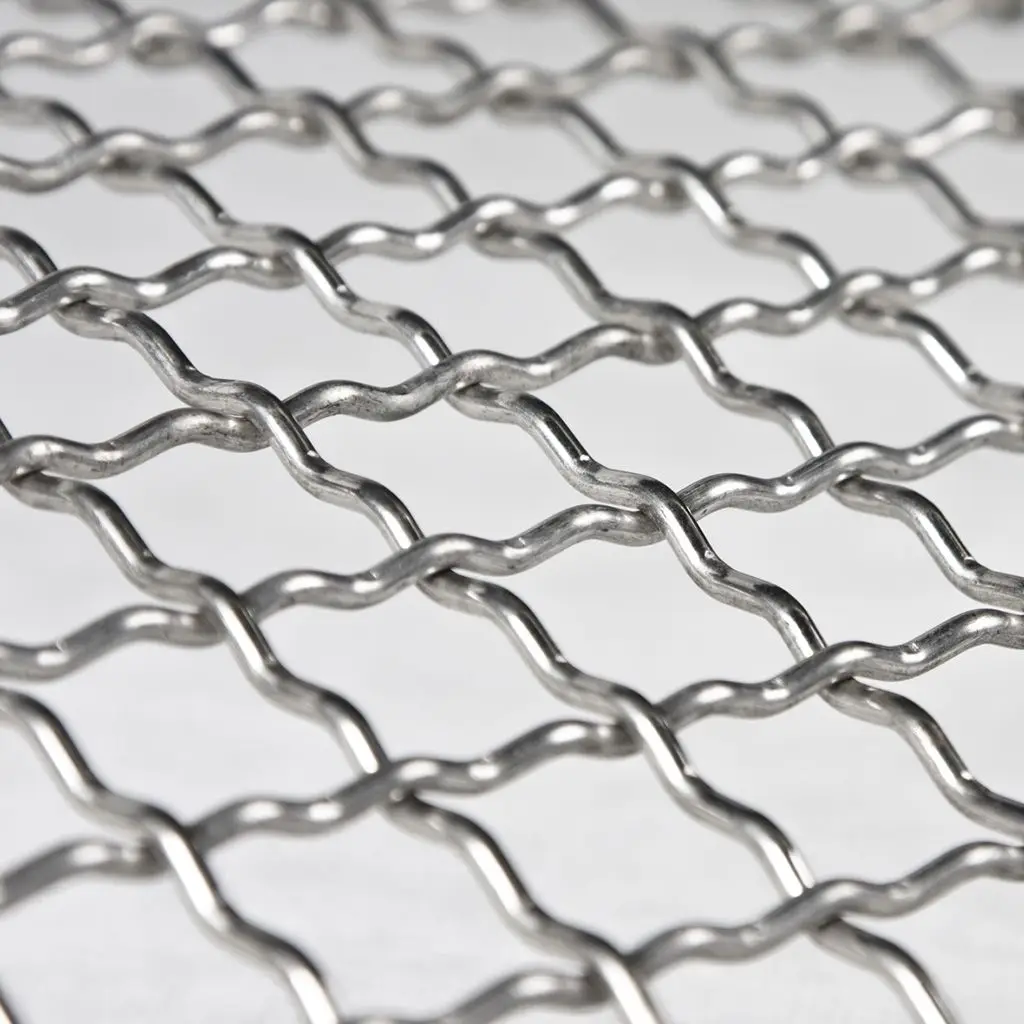

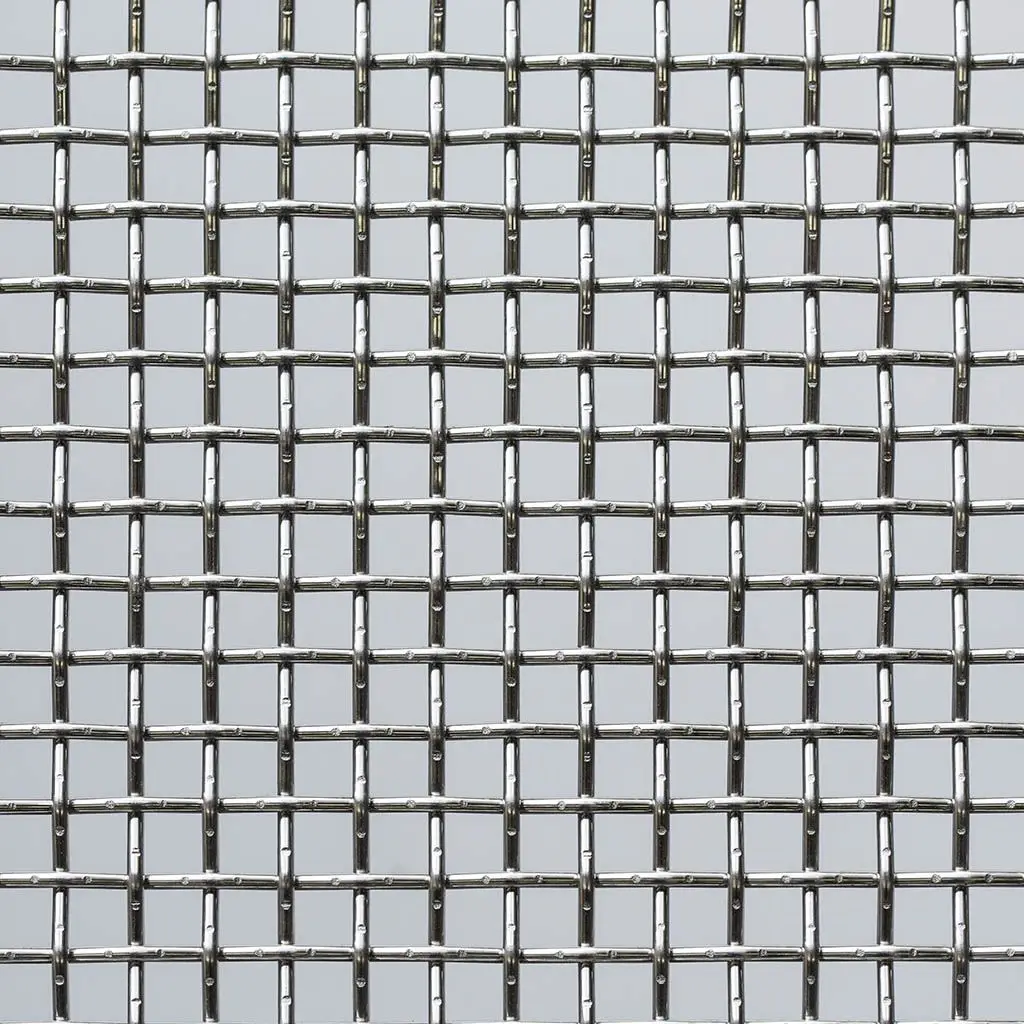

Lock Crimp Weave



Is produced with pre-crimped wire. Lock crimp weave is stabilised by a notch or bump at the wire intersections.

 Twill Weave

twill-weave

Is Produced by passing each fill wire alternatively over and under two warp wires.

Stainless Steel
Woven Mesh Calculations

  • Mesh Count
  • Wire Diam mm
  • Aperture mm
  • Open Area %
  • Weight Squ m
  • Micron (if Aperture =< 1)
