Our stocked size for stainless steel welded panels is 1200 x 2400mm
However, for large volumes, panels can be custom-made
In stock

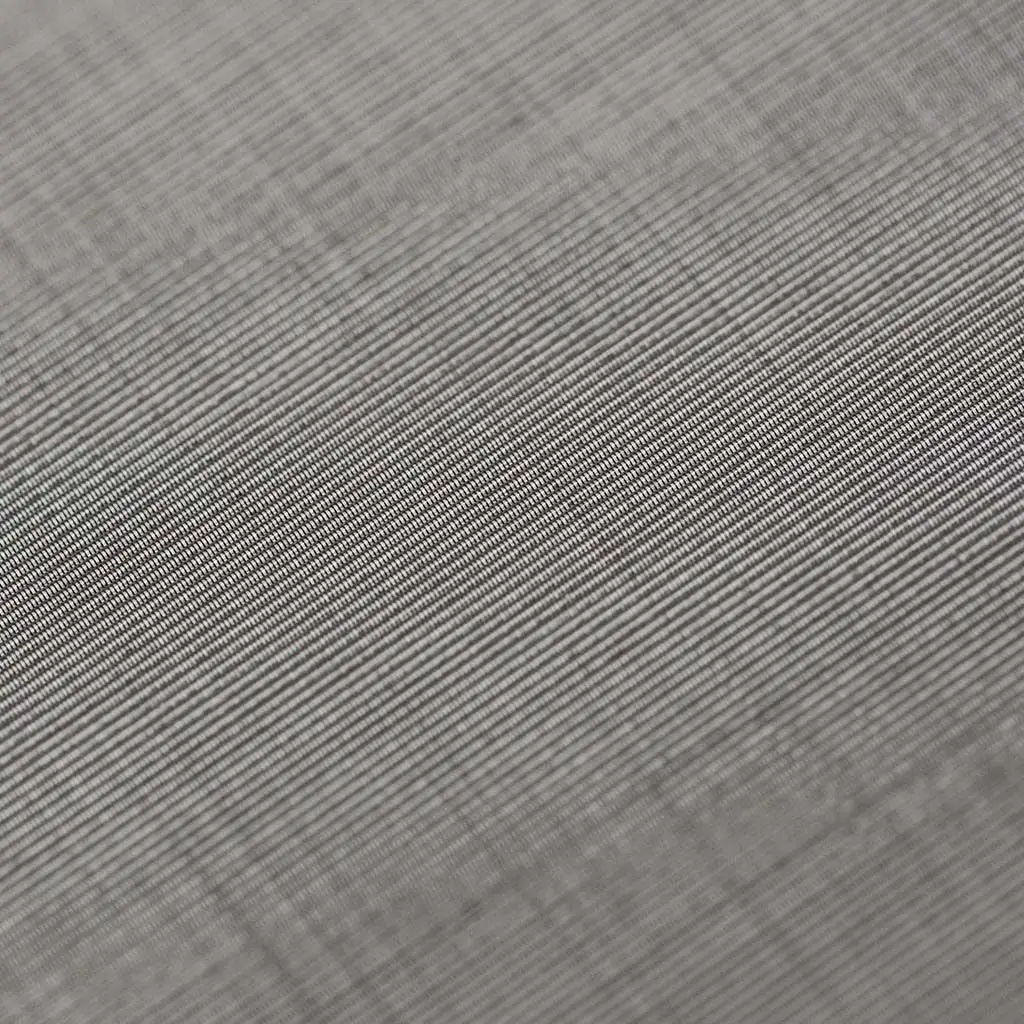

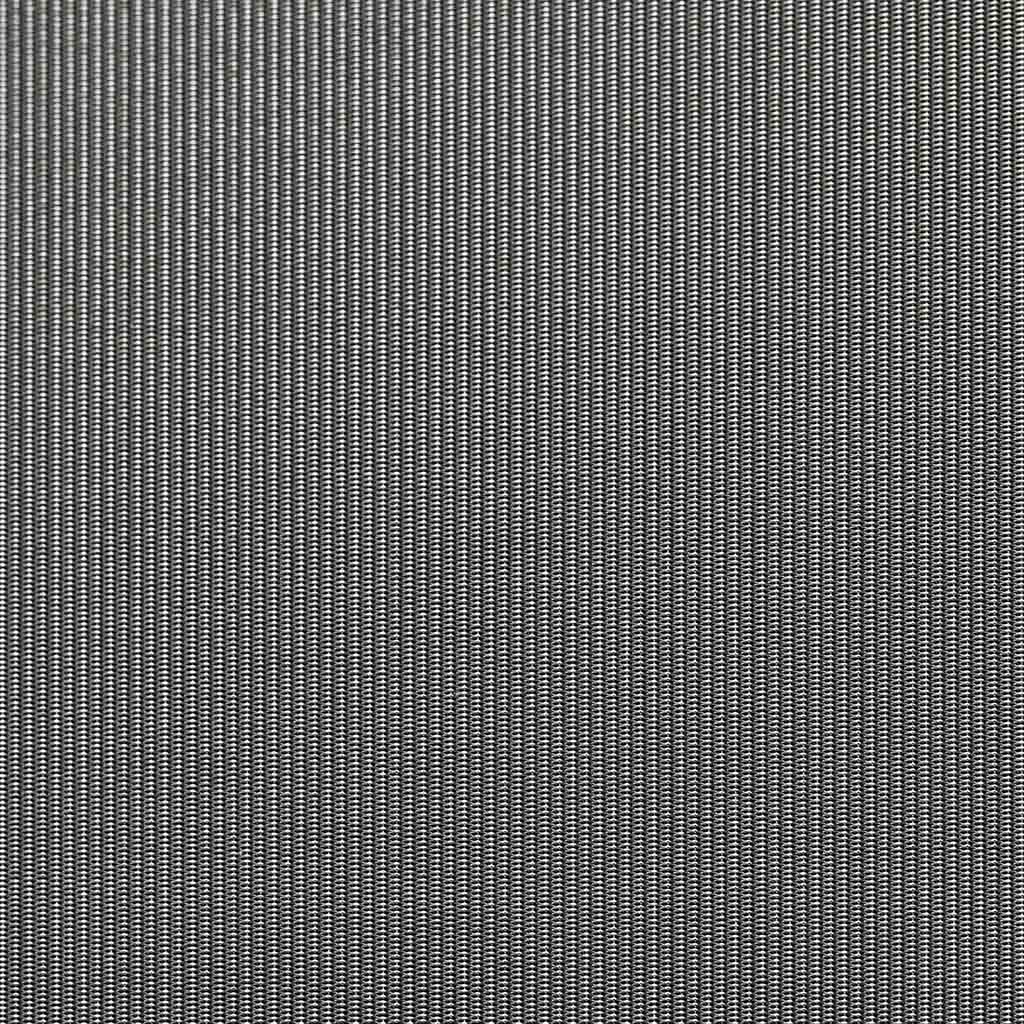

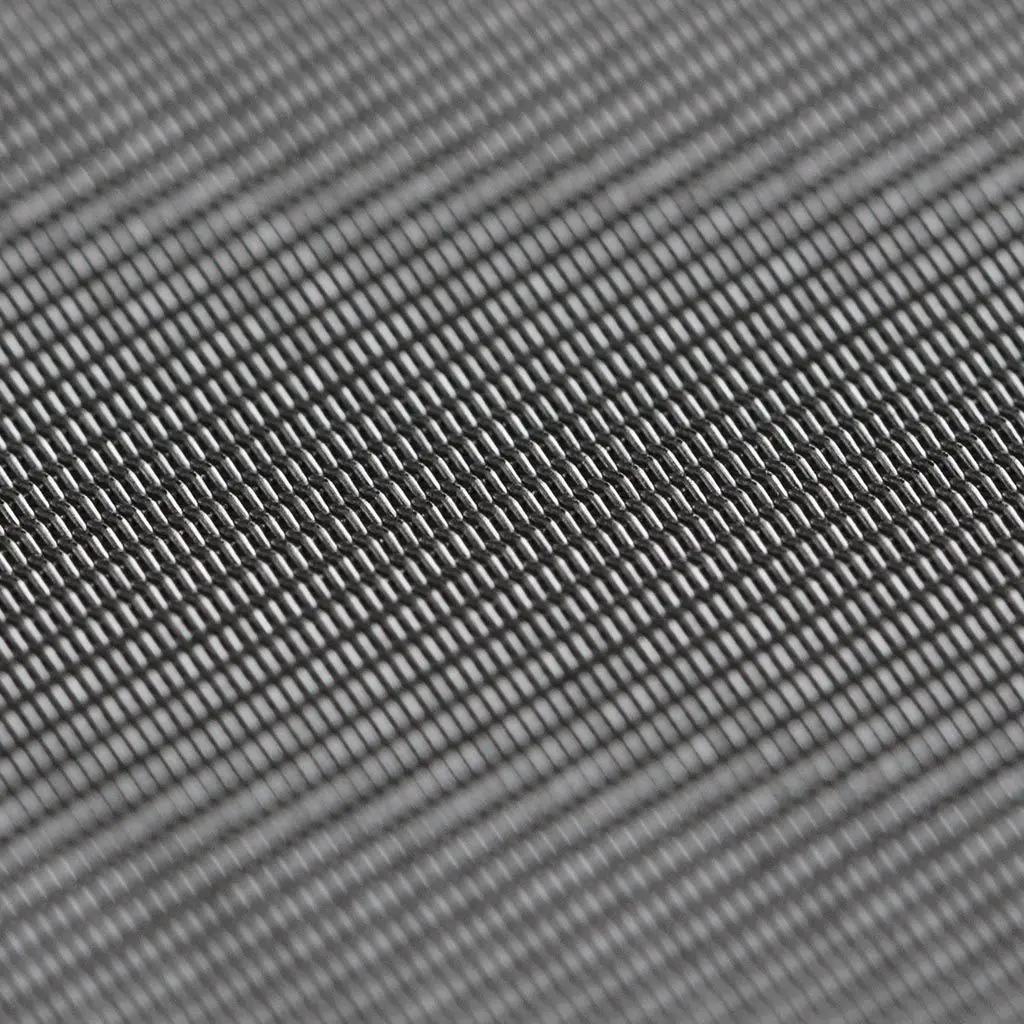

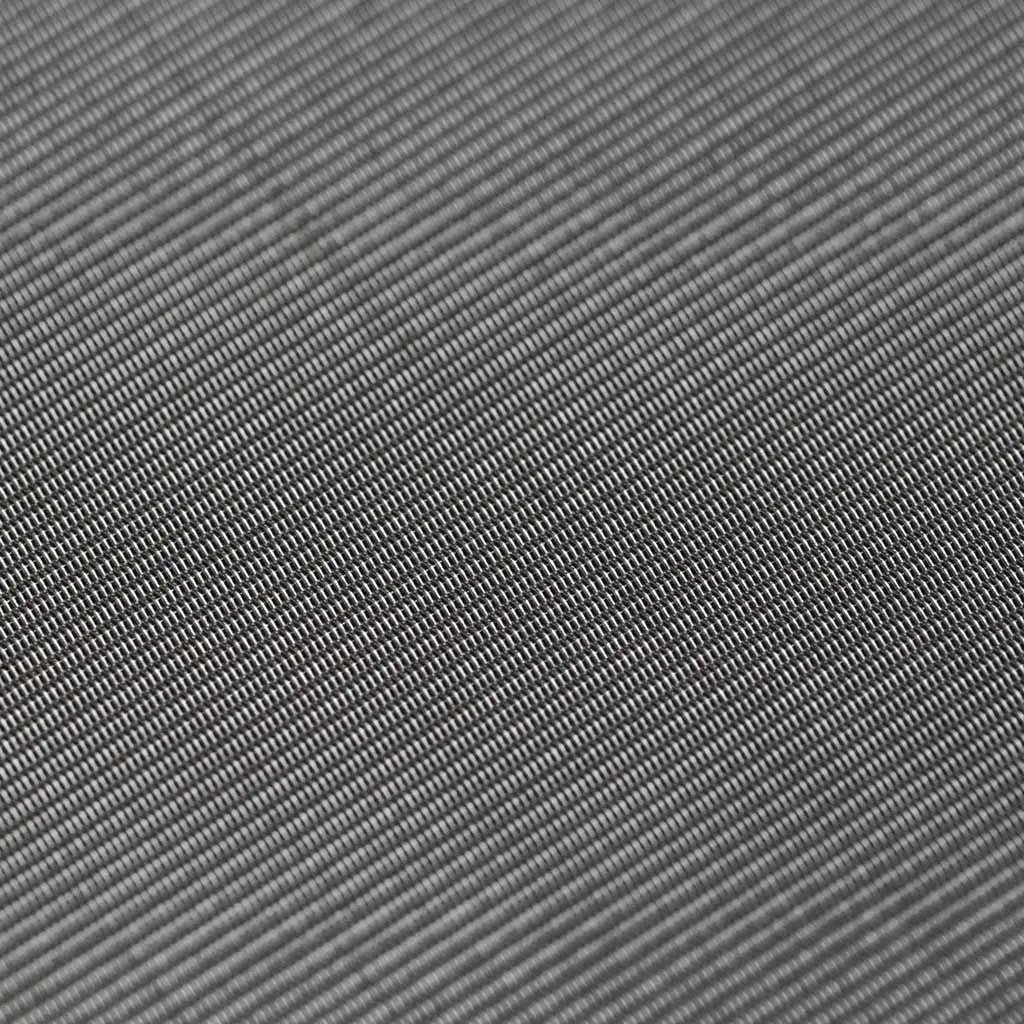

Stainless Steel Hollander Mesh, also known as Dutch Weave Mesh available in Plain Weave or Twill Weave, is a specialised type of woven wire mesh designed for high precision filtration and separation applications.
Hollander Mesh is manufactured with a unique weaving pattern, a thicker wire in one direction and a more tightly woven wire on the other direction. Producing a denser and more compact mesh, commonly used in pharmaceutical, petrochemical, aerospace and wastewater treatment facilities.
We stock an extensive range of stainless steel Hollander mesh specifications. Available in Plan Weave and Dutch Weave in grades 304 and 316. Rolls are 5 metres in length and 1200mm in width.
200/1400 to 12/64
0.17/0.04 to 0.6/0.42
304 & 316
Rolls 5m length x 1200mm width rolls
Mill also known as off the machine
A plain weave with warp wires of larger diameter than weft wires. The hollander weave mesh is made up of a limited number of warp wires interwoven with the maximum number of weft wires, producing a very strong and firm cloth. During the weaving process, both the wires are driven closer to provide a more compact and dense mesh.
It is superbly designed as a strong and firm mesh to suit various high pressure filtration applications.

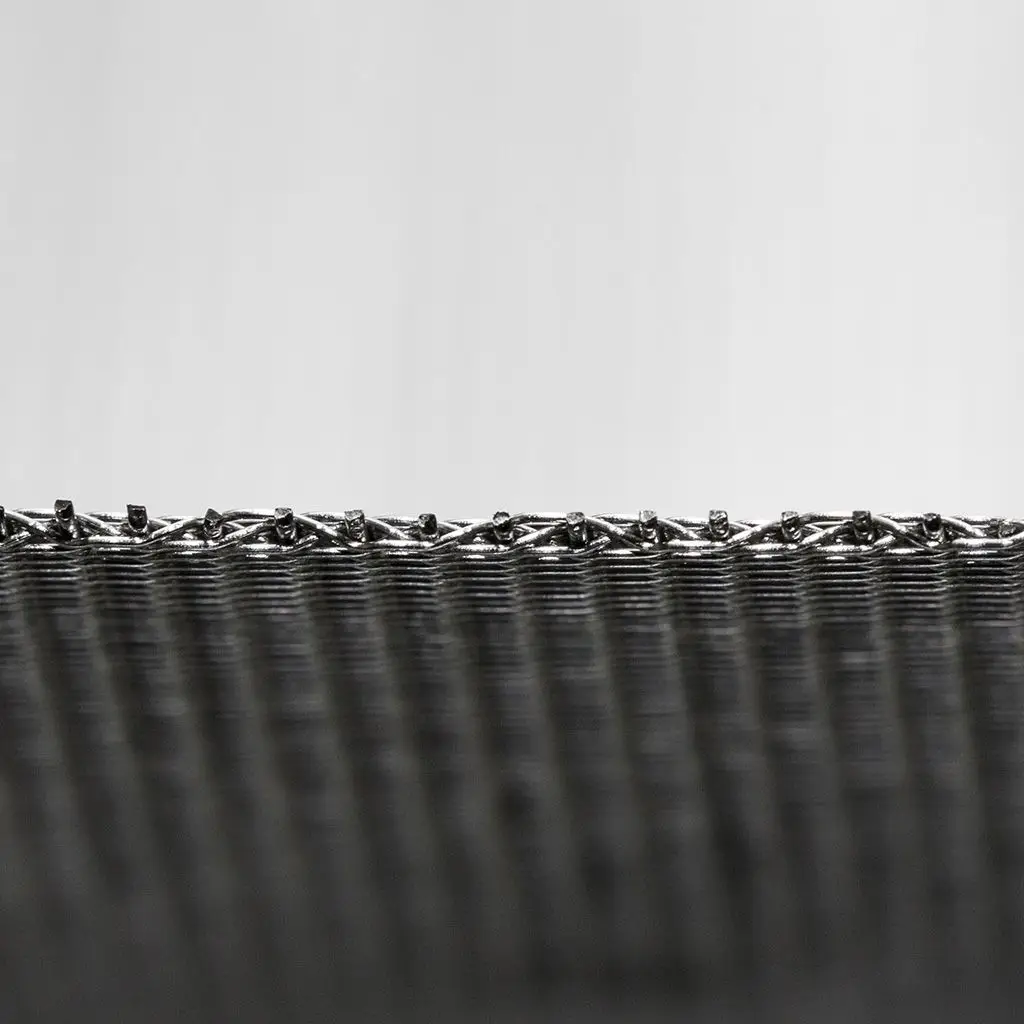

It is Hollander / Dutch plain weave with the addition of the weave pattern being twill. It has a double layer of weft wires. There are no apertures in the true sense of the word and the filtrate follows a supple path through the depth of the mesh.
Hollander / Dutch twill weave mesh is one of the strongest and tightest wire meshes. Both warp and weft wires used in manufacturing this mesh pass over and under two adjoining complimentary wires and are twill weaved. This weave ensures more dense, compact aperture size and a very smooth surface. As it has the features of both dutch weave and twilled weave it has the ability to bear greater loads with finer openings. It is commonly used for fine filtration on hydraulic systems.
Stainless Steel
HOLLANDER MESH
| PARENT CODE | DIAM MM | MESH WARP / WEFT | WEAVE | NOMINAL FILTER RATE | GRADE | REQUEST A QUOTE |
|---|
