Stainless Steel Termite mesh
Stainless Steel Termite mesh

In stock

Parent Code: SSWO

Termite Mesh

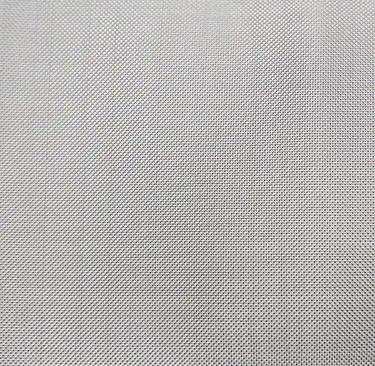

Stainless Steel Termite Mesh is an effective physical barrier designed to prevent termites moving between areas. Stainless Steel mesh is corrosion resistant and ensures long lasting protection for your building and assets.

Common Applications

Stainless steel woven mesh also commonly known as termite mesh is suitable for both Northern and Southern Australian Termites and commonly installed as termite barriers for:

  • Building foundations
  • Timber structures
  • Under slab

SSWM Stocked Stainless Steel Termite Mesh Range

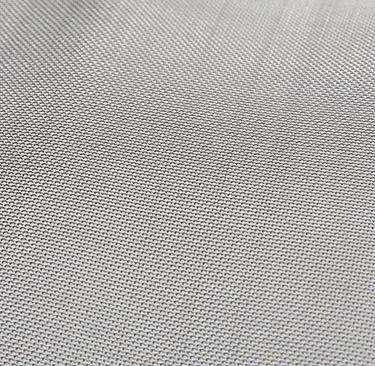

Termite Mesh is 40 / 34 mesh with an aperture of 0.415mm and wire diameter of 0.22mm in grade 316. Available in rolls 1245mm and 1550mm wide in 30m lengths.

REQUEST A QUOTE
Call Us 1300 304 316
Quality Assured & Tested Icon

Quality Assured & Tested

Same Day Despatch Icon

Same Day Despatch

Extensive stockist icon

Australia's Largest Stockist

Mesh

40/34

Aperture

0.415mm

Wire Diameter

0.22mm

Grade

316

Length x Width

30m length x 1245mm and 1550mm width rolls

Condition

Mill also known as off the machine

Still have questions?

Email Us Directly

Termite MeshStainless Steel TERMITE MESH

Stainless Steel Woven Mesh
30 Metre Rolls
Parent CodeMeshSWGAperture mmWire Diameter mmApprox % OpenMicronTechnical Data SheetRequest a Quote

TECHNICAL DATA SHEET
  • Refer to Technical Data Sheets for Specific Testing. We also provide a Material Test Certificate (MTC) for all of our products, a quality assurance document stating chemical composition to give you the confidence that you are receiving a quality product.

Stainless Steel
Woven Mesh Calculations

  • Mesh Count
  • Wire Diam mm
  • Aperture mm
  • Open Area %
  • Weight Squ m
  • Micron (if Aperture =< 1)
Yes, SSWM will sell this mesh to the following:
  • Pest controllers
  • Builders
  • Maintenance Contractors
  • Homeowners
Termites have large pincer (mandible) on their head that allow them to breakdown material and consume it. Termite resistant materials should be capable of withstanding termite attack without suffering any loss of function prior to the expected service life. Resistant materials include resistant sheet materials including mesh. The termite resistant material must be tested using termites to confirm that it will act as a barrier. Termite resistant materials available in the market include: A Stainless-Steel mesh woven from 0.18mm diameter wire with an aperture of 0.45mm x 0.45mm with properties of at least equivalent grade to 316 stainless steel.
It is important to know that not all termites are the same. They can be considered as Workers, Soldiers, Queens, and Kings. In addition to these there are different species throughout Australia
  • In the northern parts of Australia, the larger headed termites or Drywood Termites can’t pass through the following aperture:   0.66mm x 0.45mm
  • In the southern parts of Australia the smaller headed or subterranean Termites can’t pass through the following aperture: 0.45mm x 0.45mm
It is a physical barrier that prevents termites from passing from the ground, where they live, to timber structures that they eat. There are two different types of termites in Australia according to the CSIRO and they live in different parts of Australia. The larger (head) termites live above the tropic of Capricorn while the smaller (head) termite live below the tropic of Capricorn. The size of the head of the Termite is important as this is the widest part and so any barrier must be small enough to prevent the termite’s head from passing. The size of the head is measured in Width and Height.
The requirements are for Class 1 or 10 buildings where any part of the building that is designed to take a structural load (roof, ceiling, floor, stairways, ramps, wall framings members and braces) are subject to Termite Attack. Where a building’s structural load components are made from the following then the building is considered not to be susceptible to termite attack:
  • Stainless Steel, Steel, Aluminium or other metals
  • Concrete
  • Masonry
  • Fibre-reinforced cement
  • Timber – Naturally termite resistance
  • Timber – Preservative Treated
Termite mesh is specified by the Australian Building Construction Board (ABCB) within their National Construction Codes (NCC) so the risk of termite damage to buildings is minimised.  Termite infiltration in an area can have a disastrous effect on buildings making the buildings uninhabitable and unsafe. The costs to replace buildings that are affected by Termites can be many several millions of dollars, which in most cases building owners would not be able to afford.
We have a datasheet for each product item, these include a to-scale image, specifications, dimensions and weights. These are found on the website in the far right column of the product tables. We also include a link to the relevant datasheet in all quotes, proformas and invoices.
WELDED MESH
5 lineal metres and increments of 5 lineal metres
WOVEN MESH
1245mm wide – 2 lineal metres and increments of 1 lineal metre 1550mm wide – 10 lineal metres and increments of 10 lineal metres 1830mm wide – 10 lineal metres and increments of 10 lineal metres
If we receive your order before 9am, it will be dispatched on same day.
Absolutely, we welcome you to use your own freight company.
We accept payment via PayPal or direct deposit EFT. We have a strict policy of not taking credit card details over the phone
No. We only cut across the width of the roll once. To enable speed to market, we have all specifications in pre-cut 2 m rolls in 1245mm wide and 10m rolls in widths above 1550mm, which are ready to be dispatched upon order.
Please place your woven wire orders that require cutting by 11am for same day cut and pickup by 2.30pm
Please do, to enable us to assist you with your enquiry and requirements without distractions.
Our opening hours are 8.30am – 3.30pm Monday to Friday
Our stocked size for stainless steel welded panels is 1200 x 2400mm However, for large volumes, panels can be custom-made
On a double skid for interstate and country deliveries, no double skid is usually required for local deliveries or local pickups.
Yes, please either send or bring your mesh in for identification. If emailing a photo, please ensure it is against a ruler, so we can identify the mesh count and wire diameter.
Yes, as our name suggests, we sell only Stainless Steel Wire & Mesh.
