Discs & Strips

Parent Code: SSWO

In stock

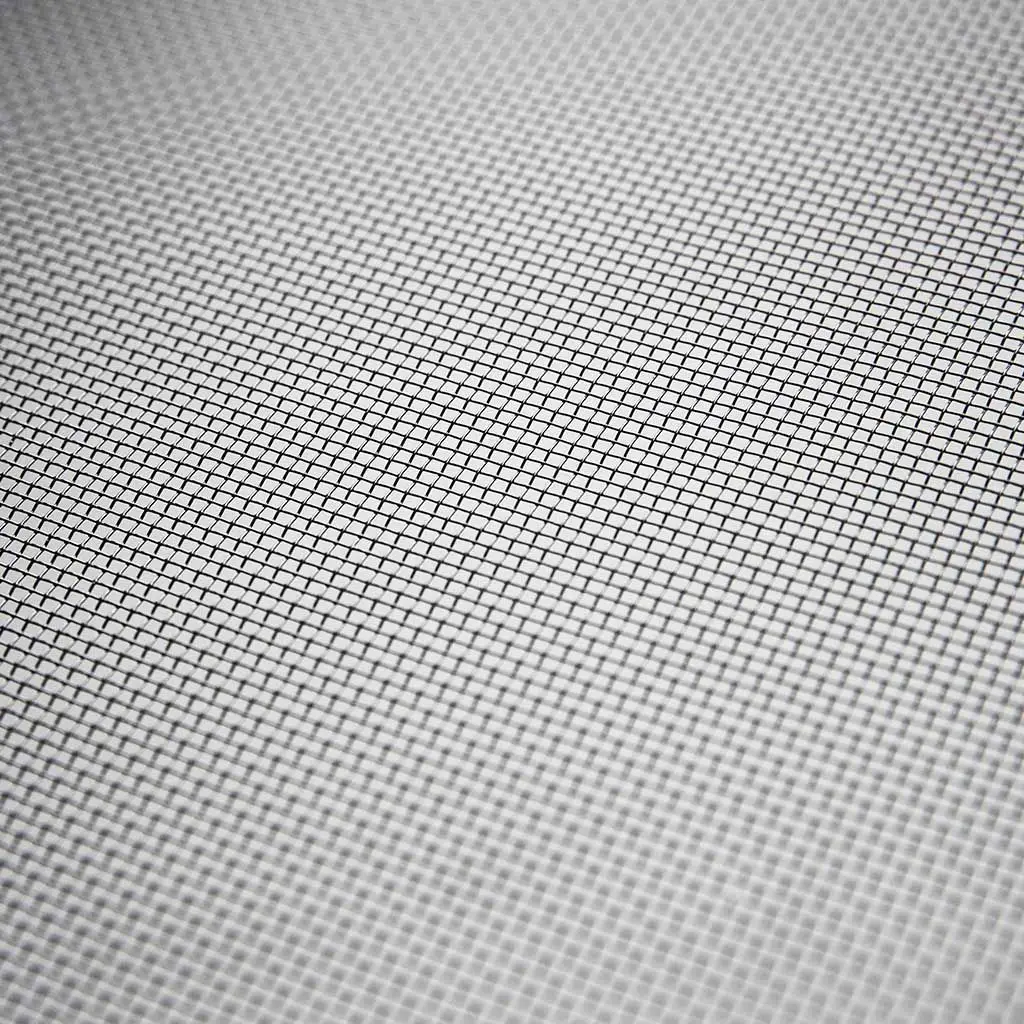

Stainless Steel Woven Mesh is a versatile and reliable product often used for fabricated products. Woven Mesh Discs used commonly for extrusion, absorption, evaporation and filtration processes in a range of industries from petrochemical, agriculture, power & water, oil & gas, pharmaceutical to food manufacturing.

Discs are manufactured by:

  • Precision punching for wire diameter up to 0.71mm
  • Laser cutting for larger wire diameter

APPLICATION USE TYPES

Custom made products that we can supply include:

  • Woven Mesh Extruder Discs (circular)
  • Woven Mesh Strips (rectangular)
  • Woven Mesh Vibrating Screens
  • Woven Mesh Strainers
  • Perforated Sheet Discs



SSWM WOVEN MESH FABRICATED RANGE

Manufactured from our stainless steel woven mesh range of over 350 specifications. Grades 304 and 316 are available in a large range of wire diameter and aperture.


Product Information

Wire Diam
up to 0.71mm precision punching
Weave                 Plain, twill & dutch weave
Grade                  304 & 316
Shapes                Circular and  rectangular
Layers                 Single layer or multi layer
Disc Diam          From 50mm to 800mm



Quick Quote

Same day despatch when your order is received by 9am.

Discs & Strips Technical Specifications

Stocked Product Specifications ready for same day despatch

Mesh 500 inch per lineal inch (fine mesh) to 1 inch per lineal to (coarse mesh)
Weave Plain, Twill, Lock Crimp & Inter Crimp Weave
Grade 304 & 316

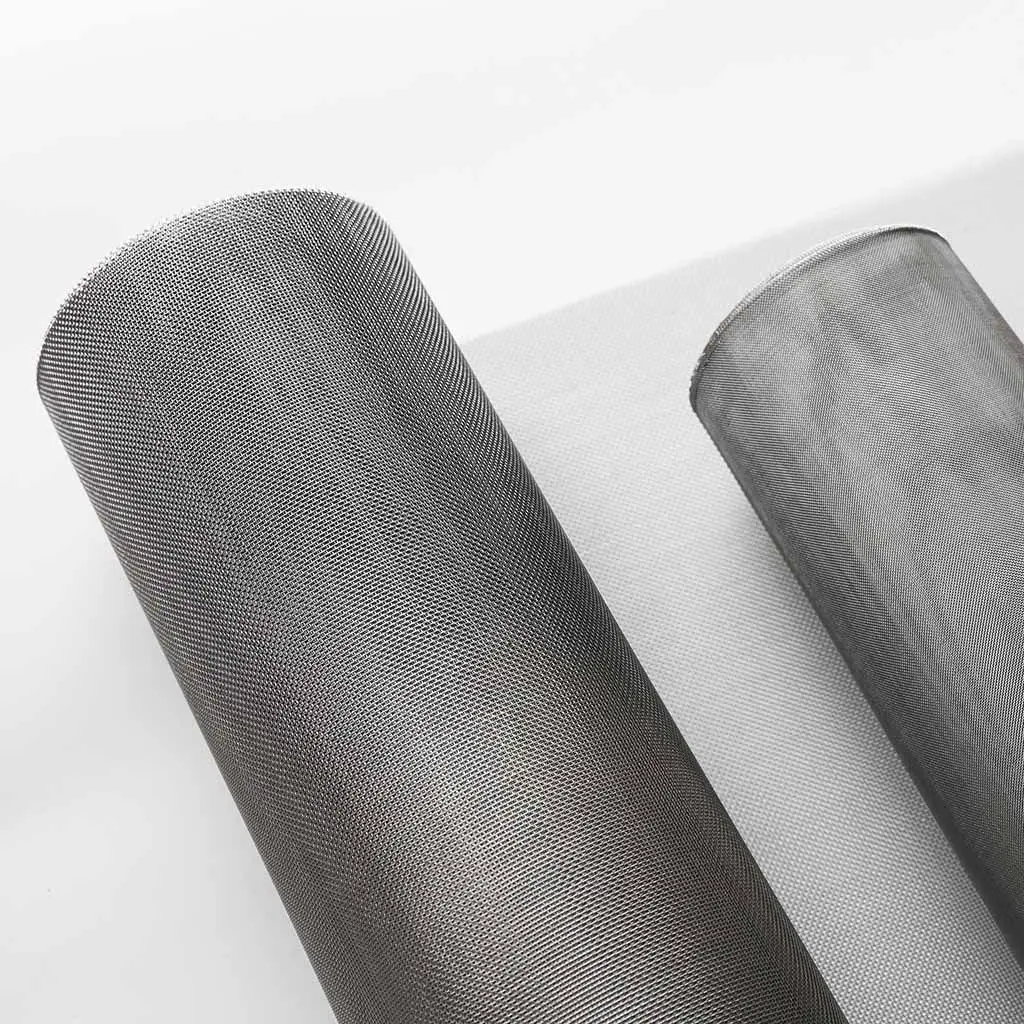

Length x Width 2m Rolls / Sheets x 1245mm width
10m length x 1550mm width rolls
30m length x 1245mm, 1550mm and 1830mm width rolls
Finish Mill also known as off the machine

MINIMUM SALE QUANTITIES

Minimum Sale Quantities

915mm, 1220mm & 1245mm width  – 2 lineal meters. Then sold in multiples of 1 metre.

1550mm width  – 10 lineal meters. Then sold in multiples of 10 metres.
^ Sold 30m roll only.

Stainless Steel WOVEN MESH

Parent CodeMeshSWGAperture mmWire Diameter mmApprox % OpenMicronTechnical Data SheetRequest a Quote

Mesh is Tested / Manufactured to:

ASTM International (formerly American Society for Testing and Materials)
✔ ASTM E2016-15 ‘Standard Specification for Industrial Woven Wire Cloth’
Manufactured to
Technical Data Sheets
✔ Refer to SSWM Technical Data Sheets for further Standards / Testing information and which of the above are relevant to the mesh that you have selected
Yes, as our name suggests we sell only Stainless Steel Wire & Mesh.

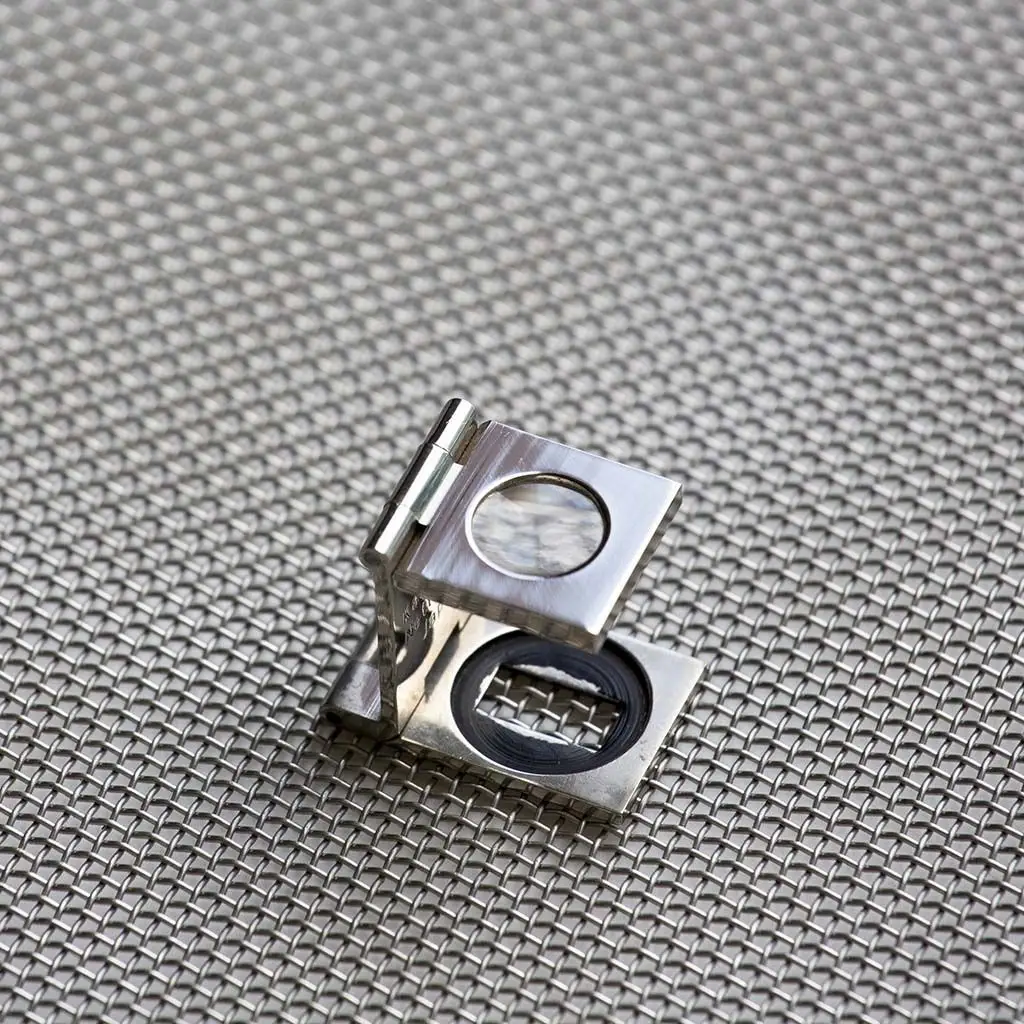

Yes, please either send or bring your mesh in for identification. If emailing a photo, please ensure it is against a ruler, so we can identify the mesh count, and wire diameter.
On a double skid for interstate and country deliveries, no double skid is usually required for local deliveries or local pickups.
Our stocked size is 1200 x 2400mm. However for large volumes panels can be custom made.
Our opening hours are 8.30am – 3.30pm Monday to Friday
Please do, to enable us to assist you with your enquiry and requirements without distractions.
Please place your woven wire orders that require cutting by 11am for same day cut and pickup by 2.30pm
No. We only cut across the width of the roll once. To enable speed to market we have all specifications in pre-cut 2 m rolls in 1245mm wide and 10m rolls in widths above 1550mm which are ready to be dispatched upon order.
We accept payment via PayPal or direct deposit EFT. We have a strict policy of not taking credit card details over the phone
Absolutely, we welcome you to use your own freight company.
If we receive your order before 9am, it will be dispatched on same day.

WELDED MESH

5 lineal metres and increments of 5 lineal metres

WOVEN MESH

1245mm wide – 2 lineal metres and increments of 1 lineal metre 1550mm wide – 10 lineal metres and increments of 10 lineal metres 1830mm wide – 10 lineal metres and increments of 10 lineal metres
We have a datasheet for each product item, these include a to scale image, specifications, dimensions and weights. These are found on the website in the far right column of the product tables. We also include a link to the relevant datasheet in all quotes, proformas and invoices.

There are no questions specific to this product.

Stainless Woven Mesh Terminology

Mesh – The number of openings per lineal inch.
SWG – Standard wire gauge
Aperture– The distance between two adjacent wires
Diameter– The thickness of the wire before weaving
Pitch– The distance between the middle point of two adjacent wires or the sum of the aperture width and the wire diameter.
% Open Area– The ratio of the area of the aperture to the area of the mesh expressed in percentage terms
Warp– All wires running lengthwise of the cloth as woven
Weft– All wires running across the cloth as woven

Stainless Woven Mesh Formulas

Aperture
Calculating the aperture
1. Count of a convenient number of apertures (N)
2. Measure the length covered by the N apertures (L)
3. Measure the wire diameter (D)
4. The average aperture

calculating-woven-wire-mesh-aperture

Working example of calculating the aperture of 6/20 woven wire mesh
1. Number of apertures counted                         N = 6
2. Length covered by apertures centre to centre  L = 25.4mm
3. Diameter of wire                                           D = 0.9mm
4. Aperture

calculating-aperture

The woven wire is identified as 3.33mm aperture / 0.9mm diameter
Mesh Count
If the aperture and the diameter are known the mesh count can be determined

calculating-mesh-count-1

Percentage Open Area

calculating-open-area

The mesh has a 62% open area

Micron Conversion
Micron (micrometer) is a unit of measure, in which usually only fine mesh under 1mm is referred to. A micron us a thousandth of a millimetre.

In this example 325/48.5, 0.043mm aperture, 0.035mm diameter is used.

micron-conversion-3



Plain Weave



The most common and simplest weaves.Each warp wire (wire running parallel to the length of the cloth) passes alternatively over and under the wires running transversly through the cloth at 90 degree angles.
Intercrimp Weave



Has extra crimps in warp and weft wires between intersections.

Lock Crimp Weave



Is produced with pre-crimped wire. Lock crimp weave is stabilised by a notch or bump at the wire intersections.

 Twill Weave

twill-weave

Is Produced by passing each fill wire alternatively over and under two warp wires.

Stainless Steel
Woven Mesh Calculations

  • Mesh Count
  • Wire Diam mm
  • Aperture mm
  • Open Area %
  • Weight Squ m
  • Micron (if Aperture =< 1)
