stainless steel Window and Door Mesh

Window and Door Mesh

Stainless Steel Window & Door Mesh is part of your solution for stopping insects, intruders & embers.

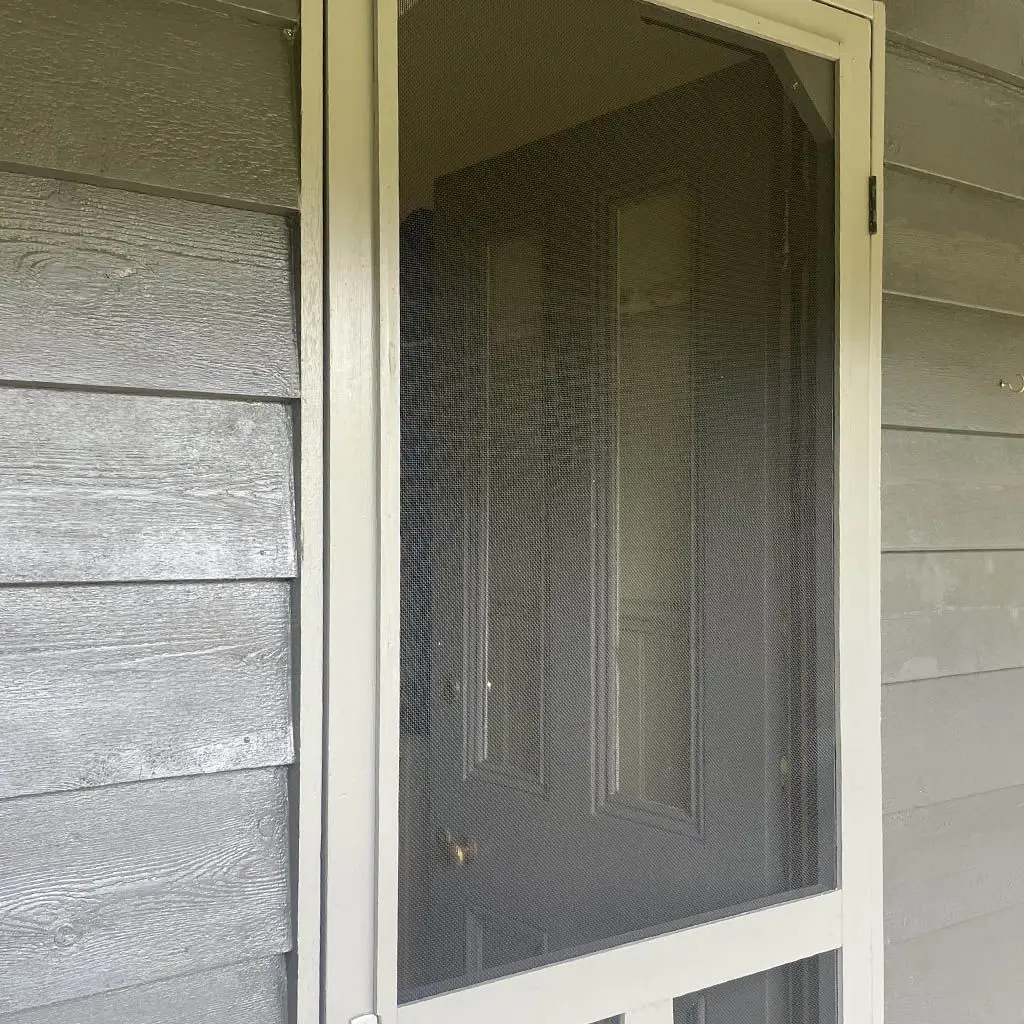

Stainless Steel Window & Door Mesh keeps insects, intruders and embers out whilst letting the breeze in and allowing visibility.

Our range, flexi, toughextreme & ultra extreme is designed to suit any window & door application. Whether it be to keep pesky insects out or provide the protection of security mesh keeping families safe. With the added benefit of ember protection in rural areas.

Australia is an incredibly diverse country and when Customers request window & door mesh our first questions are ‘where is the project and what size are your insects?’ as far north Queensland has very different insects to metro Sydney & Melbourne!

Stocked Product Specifications ready for same day despatch
We stock an extensive range of roll widths and sheet sizes in black powder coated and uncoated. The black powder coated mesh (contains UV stabilizer) and provides excellent visibility.

SSWM is Australia’s leading stockist of Stainless Steel Window & Door Mesh:
Black Window & Door Mesh Insect & Intruder Stop
Stainless Steel Window & Door Mesh Insect & Intruder Stop

BAL 12.5 – FZ (Bushfire Mesh)
SSWM Window & Door Mesh can be used to meet the requirements of AS3959 amdt 3 for BAL 12.5 -FZ, where mesh is referenced and if the prescribed construction requirements are met.

Click here for Bushfire Mesh.

Category:
For multiple roll orders please contact [email protected] or 1300 305 148 as order is too large for courier.
Australia’s largest stockist of stainless steel wire & mesh

Australia’s largest stockist of stainless steel wire & mesh
We have the largest and most comprehensive Australian stock holding of stainless steel wire and mesh in our purpose laid out warehouse with over: 350 stainless steel woven mesh specifications including mill finish, black powder coated, hollander mesh & bolting cloth in 30m, 10m, 5m & 2m rolls in varying widths

Testing / Standards

Testing / Standards
SSWM have undertaken extensive testing please refer to the Testing/Standards Tab below.

Design & Install Considerations

Design & Install Considerations
Practical information for your consideration.



Architectural Mesh
If the mesh is being used externally for aesthetic purposes, to minimise tea staining please evaluate if the mesh is to be pickled, passivated and electropolished.

Care & Maintenance

Care & Maintenance
Stainless steel is a low maintenance material, but not maintenance free. Regular cleaning is recommended to prevent the build-up of contaminants such as dirt and salt. Refer to our CARE page for further information.

Speed to Market

Speed to Market
Same day despatch when your order is received by 9am for Australia wide delivery.

Contact Us

STOCKED WINDOW & DOOR INSECT & INTRUDER STOP
STAINLESS STEEL BLACK WOVEN MESH
ROLLS / SHEETS

WINDOW DOOR BLACK WOVEN MESH

wdt_ID PRODUCT NAME PARENT CODE PRODUCT IMAGE MESH SWG APERTURE MM WIRE DIAMETER MM GRADE APPROX % OPEN* ROLL / SHEET DATA SHEET REQUEST A QUOTE ORDER ONLINE VARIANTS
1 Insect Stop FLEXI SSWOB 01230 18 36.5 1.23 0.18 316 76 Roll PDF Quote Order
PRODUCT CODEROLL LENGTH MWIDTH MAPPROX WEIGHT KG*REQUEST A QUOTEORDER ONLINE
SSWOB 01230 0616 30306105.5QuoteOrder
SSWOB 01230 0916 15159154QuoteOrder
SSWOB 01230 0916 30309159QuoteOrder
SSWOB 01230 1226 151512205QuoteOrder
SSWOB 01230 1226 3030122011QuoteOrder
SSWOB 01230 1556 151515507QuoteOrder
SSWOB 01230 1556 3030155014QuoteOrder
2 Insect Stop TOUGH SSWOB 01670 12 26 1.67 0.45 316 62 Roll PDF Quote Order
PRODUCT CODEROLL LENGTH MWIDTH MAPPROX WEIGHT KG*REQUEST A QUOTEORDER ONLINE
SSWOB 01670 0196 30301907QuoteOrder
SSWOB 01670 0916 559156Quote
SSWOB 01670 0916 151591517QuoteOrder
SSWOB 01670 0916 303091534Quote
SSWOB 01670 1226 5512208Quote
SSWOB 01670 1226 3030122045Quote
SSWOB 01670 1246 55124510Quote
SSWOB 01670 1246 1515124523QuoteOrder
SSWOB 01670 1556 55155010Quote
SSWOB 01670 1556 1515155029QuoteOrder
SSWOB 01670 1246 3030124546Quote
SSWOB 01670 1556 3030155058Quote
3 Intruder Stop EXTREME SSWOBS 01510 11 21 1.51 0.8 304 43 Sheet PDF Quote
PRODUCT CODESHEET LENGTH MWIDTH MAPPROX WEIGHT KG*REQUEST A QUOTE
SSWOBS 01510 0750 200420007505.4Quote
SSWOBS 01510 0750 240424007506.5Quote
SSWOBS 01510 0900 200420009006.5Quote
SSWOBS 01510 0900 240424009007.8Quote
SSWOBS 01510 1200 2004200012008.7Quote
SSWOBS 01510 1200 24042400120010.4Quote
SSWOBS 01510 1500 20042000150010.8Quote
SSWOBS 01510 1500 24042400150013Quote
4 Intruder Stop EXTREME SSWOBS 01510 11 21 1.51 0.8 316 43 Sheet PDF Quote
PRODUCT CODESHEET LENGTH MWIDTH MAPPROX WEIGHT KG*REQUEST A QUOTE
SSWOBS 01510 0750 200620007505.4Quote
SSWOBS 01510 0750 240624007506.5Quote
SSWOBS 01510 0900 200620009006.5Quote
SSWOBS 01510 0900 240624009007.8Quote
SSWOBS 01510 1200 2006200012008.7Quote
SSWOBS 01510 1200 24062400120010.4Quote
SSWOBS 01510 1500 20062000150010.8Quote
SSWOBS 01510 1500 24062400150013Quote

BLACK Sold full rolls only
* Pre black powder coat finish

STOCKED WINDOW & DOOR INSECT & INTRUDER STOP
STAINLESS STEEL UNCOATED WOVEN MESH
30 METRE ROLLS

WINDOW DOOR UNCOATED WOVEN MESH

wdt_ID PRODUCT NAME PARENT CODE PRODUCT IMAGE MESH SWG APERTURE MM WIRE DIAMETER MM APPROX % OPEN AREA TECHNICAL DATA SHEET REQUEST A QUOTE VARIANTS
1 Insect Stop TOUGH SSWO 01670 12 26 1.67 0.45 62 PDF Quote
PRODUCT CODEGRADEWIDTH MMAPPROX WEIGHT KGREQUEST A QUOTE
SSWO 01670 091430491534Quote
SSWO 01670 091631691534Quote
SSWO 01670 1244304124546Quote
SSWO 01670 1246316124546Quote
SSWO 01670 1554304155058Quote
SSWO 01670 1556316155058Quote
SSWO 01670 1836 30^316183068Quote
2 Intruder Stop ULTRA EXTREME SSWO 01640 10 20 1.64 0.9 42 PDF Quote
PRODUCT CODEGRADEWIDTH MMAPPROX WEIGHT KGREQUEST A QUOTE
SSWO 01640 0914304915114Quote
SSWO 01640 12443041245155Quote
SSWO 01640 12463161245155Quote
SSWO 01640 15543041550193Quote
SSWO 01640 15563161550193Quote

Minimum Sale Quantities
^ Sold 30m roll only
915mm, 1220mm & 1245mm wide – 2 lineal meters
1550mm wide – 10 lineal meters (only sold in multiples of 10 lineal meters)
Formability Self Supporting, Rigidity Rigid, Cutting Guillotine / Grinder, Other Uses Security Mesh

Print Table

Mesh is Tested / Manufactured to:

ASTM International (formerly American Society for Testing and Materials)

✔ ASTM E2016-15 ‘Standard Specification for Industrial Woven Wire Cloth’
Manufactured to

Australian Standards
✔ AS 3959-2009 Amdt 3
‘Construction of Buildings in Bushfire Prone Areas’ meets physical requirements of mesh
Aperture <2mm, Corrosion Resistant, Non Combustible
✔ AS/NZS 1530.3:1999 ‘Simultaneous Determination of Ignitability, Flame Propagation, Heat Release and Smoke Release’
✔ FCO-3313 CSIRO Advisory Report regarding ‘Bushfire Mesh’ range & criteria of AS 3959-2009BAL 12.5 – FZ. If used in the prescribed construction manner
✔ AS 2331.3.1 2001 Neutral Salt Spray Test
1000 Hours, No Corrosion
✔ AS 5041 2003 Knife Shear Test
Passed
Technical Data Sheets
✔ Refer to SSWM Technical Data Sheets for further Standards / Testing information and which of the above are relevant to the mesh that you have selected

Stainless Steel Window & Door Mesh - More Information

Stainless Woven Mesh Terminology

Mesh – The number of openings per lineal inch.
SWG – Standard wire gauge
Aperture– The distance between two adjacent wires
Diameter– The thickness of the wire before weaving
Pitch– The distance between the middle point of two adjacent wires or the sum of the aperture width and the wire diameter.
% Open Area– The ratio of the area of the aperture to the area of the mesh expressed in percentage terms
Warp– All wires running lengthwise of the cloth as woven
Weft– All wires running across the cloth as woven

Stainless Woven Mesh Formulas

Aperture
Calculating the aperture
1. Count of a convenient number of apertures (N)
2. Measure the length covered by the N apertures (L)
3. Measure the wire diameter (D)
4. The average aperture

calculating-woven-wire-mesh-aperture

Working example of calculating the aperture of 6/20 woven wire mesh
1. Number of apertures counted                         N = 6
2. Length covered by apertures centre to centre  L = 25.4mm
3. Diameter of wire                                           D = 0.9mm
4. Aperture

calculating-aperture

The woven wire is identified as 3.33mm aperture / 0.9mm diameter
Mesh Count
If the aperture and the diameter are known the mesh count can be determined

calculating-mesh-count-1

Percentage Open Area

calculating-open-area

The mesh has a 62% open area

Micron Conversion
Micron (micrometer) is a unit of measure, in which usually only fine mesh under 1mm is referred to. A micron us a thousandth of a millimetre.

In this example 325/48.5, 0.043mm aperture, 0.035mm diameter is used.

micron-conversion-3

Plain Weave



The most common and simplest weaves.Each warp wire (wire running parallel to the length of the cloth) passes alternatively over and under the wires running transversly through the cloth at 90 degree angles.
Intercrimp Weave



Has extra crimps in warp and weft wires between intersections.

Lock Crimp Weave



Is produced with pre-crimped wire. Lock crimp weave is stabilised by a notch or bump at the wire intersections.

 Twill Weave

twill-weave

Is Produced by passing each fill wire alternatively over and under two warp wires.

Stainless Steel
Woven Mesh Calculations

  • Mesh Count
  • Wire Diam mm
  • Aperture mm
  • Open Area %
  • Weight Squ m
  • Micron (if Aperture =< 1)
