Filtration Mesh

Parent Code: SSWO

In stock

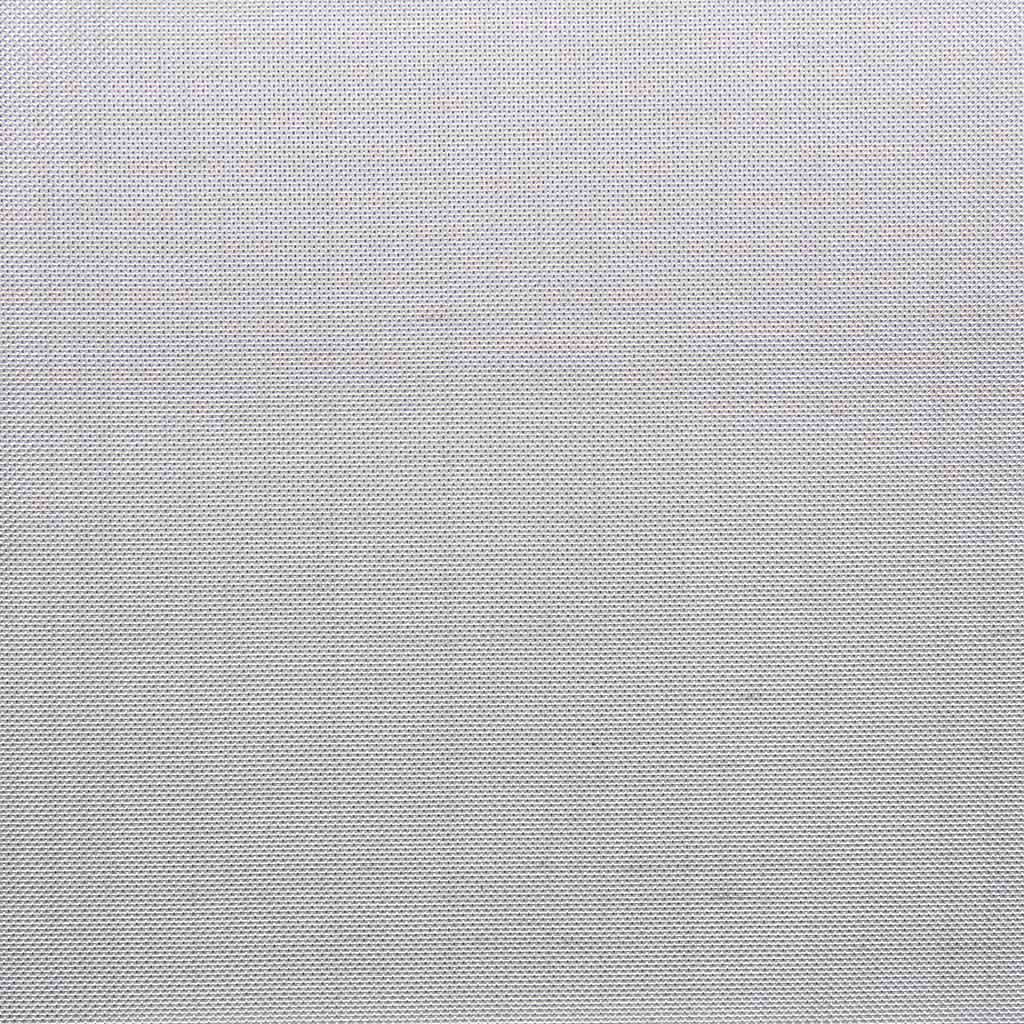

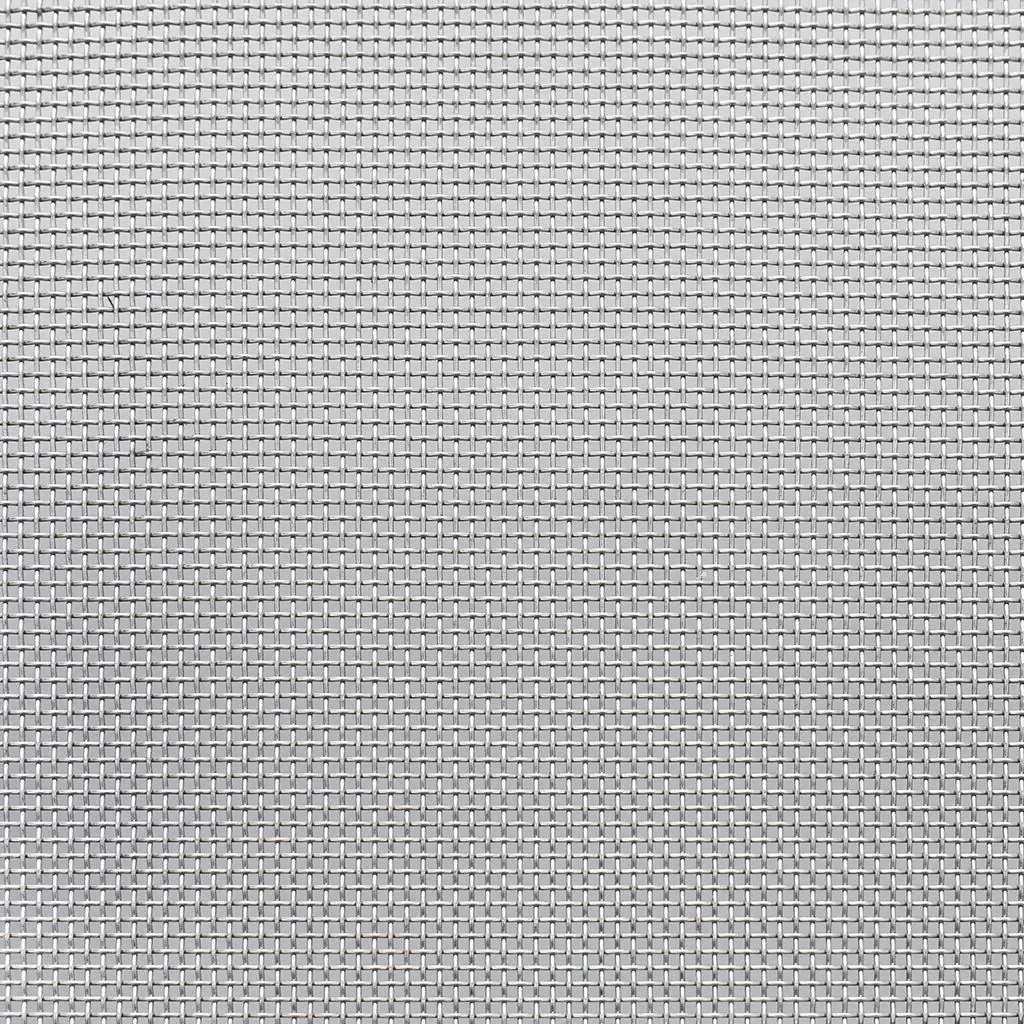

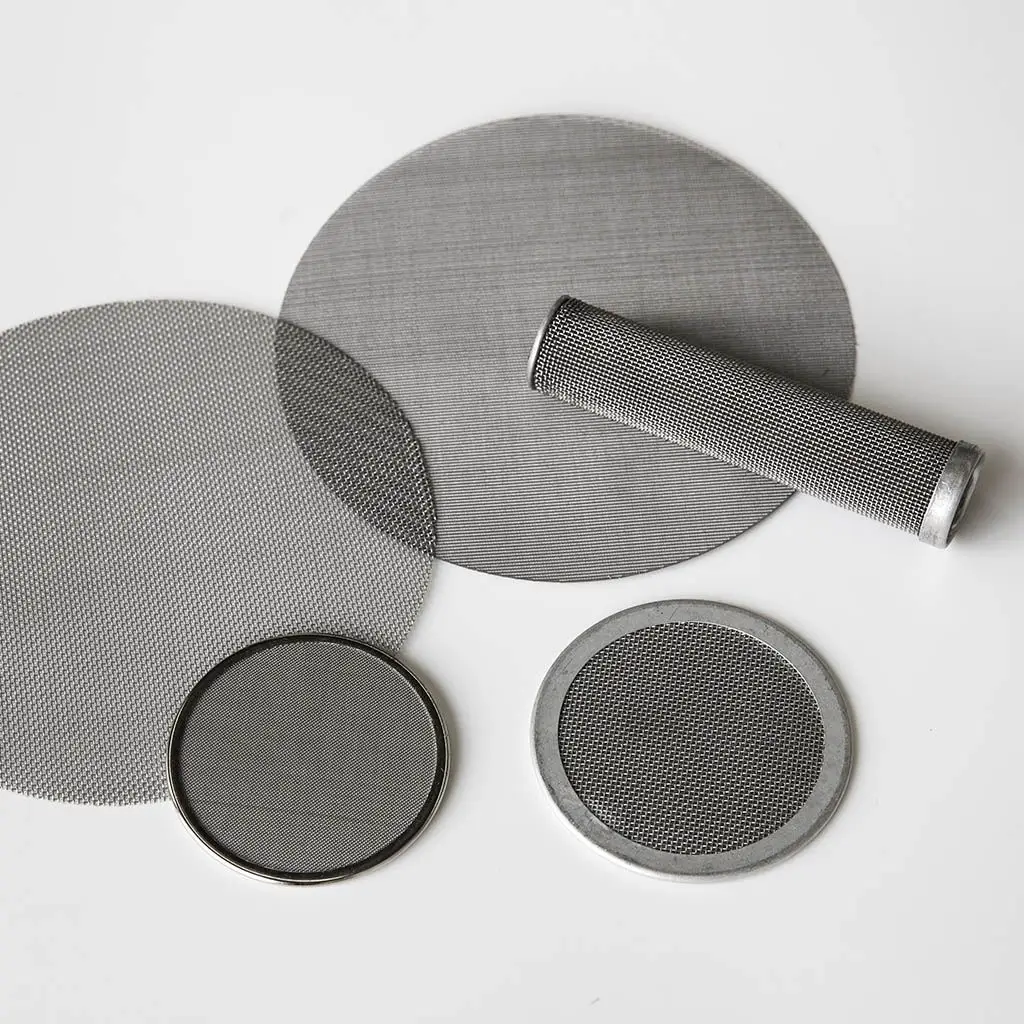

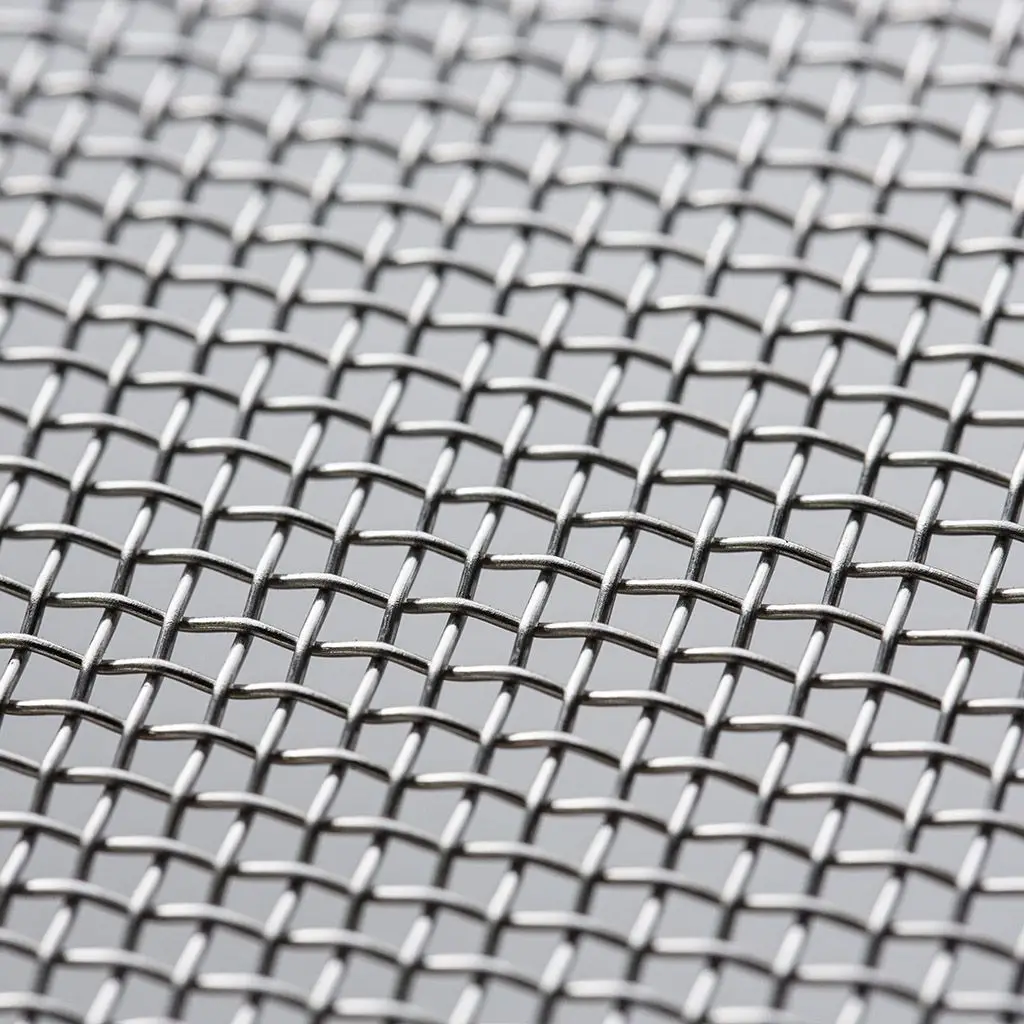

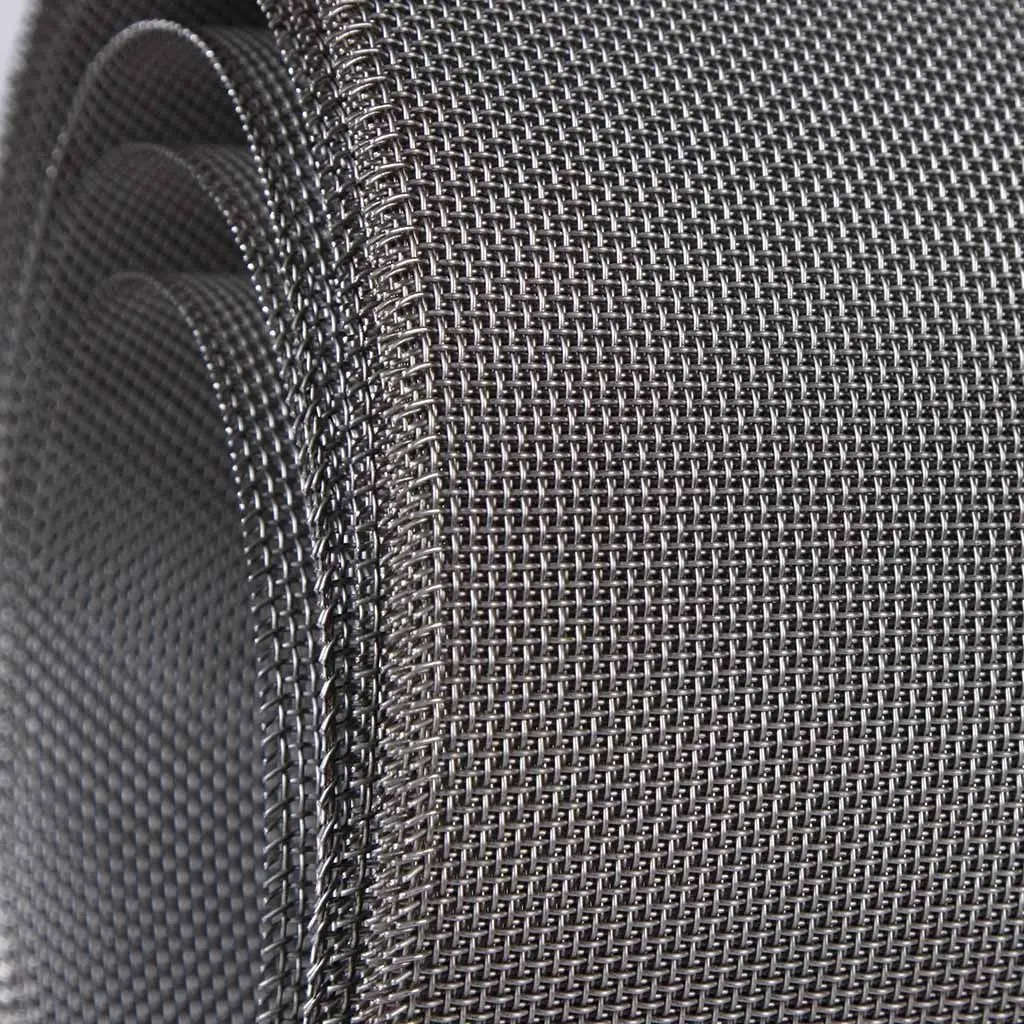

Stainless steel woven wire mesh is commonly used for the manufacturing of filters in the food and beverage industry.

Stainless steel is a superior material used in food processing. It is the most commonly found material in commercial kitchens and food processing plants.

Stainless steel woven mesh has excellent properties which make it an ideal material for filtration:

✔  Heat resistance
✔  Ease of fabrication
✔  Cleanability and hygiene properties

Quick Quote

Same day despatch when your order is received by 9am.

Filtration Mesh Technical Specifications

Stocked Product Specifications ready for same day despatch

Welded Panels

Mesh
500 inch per lineal inch (fine mesh) to 1 inch per lineal to (coarse mesh)
Weave
Plain, Twill, Lock Crimp & Inter Crimp Weave
Grade
304 & 316
Length x Width
2m Rolls / Sheets x 1245mm width
10m length x 1550mm width rolls
30m length x 1245mm, 1550mm and 1830mm width rolls
Finish
Mill also known as off the machine

MINIMUM SALE QUANTITIES

Minimum Sale Quantities

915mm, 1220mm & 1245mm width – 2 lineal meters. Then sold in multiples of 1 metre.

1550mm width – 10 lineal meters. Then sold in multiples of 10 metres.
^ Sold 30m roll only.

Stainless Steel FILTRATION MESH

Parent CodeMeshSWGAperture mmWire Diameter mmApprox % OpenMicronTechnical Data SheetRequest a Quote
Cutting Please place your woven wire orders that require cutting by 11:00am for same day cut and pick up by 2:30pm.

Mesh is Tested / Manufactured to:

ASTM International (formerly American Society for Testing and Materials)
✔ ASTM E2016-15 ‘Standard Specification for Industrial Woven Wire Cloth’
Manufactured to
Technical Data Sheets
✔ Refer to SSWM Technical Data Sheets for further Standards / Testing information and which of the above are relevant to the mesh that you have selected

FREQUENTLY ASKED QUESTIONS

At Stainless Steel Wire & Mesh, we get a lot of commonly asked questions about our range of products and their many applications.  This FAQ page lists those frequently asked questions. If your question is not answered here, please do not hesitate to contact us for help.
Yes, as our name suggests we sell only Stainless Steel Wire & Mesh.
Yes, please either send or bring your mesh in for identification. If emailing a photo, please ensure it is against a ruler, so we can identify the mesh count, and wire diameter.
On a double skid for interstate and country deliveries, no double skid is usually required for local deliveries or local pickups.

Our stocked size is 1200 x 2400mm.

However for large volumes panels can be custom made.

Our opening hours are 8.30am – 3.30pm Monday to Friday
Please do, to enable us to assist you with your enquiry and requirements without distractions.
Please place your woven wire orders that require cutting by 11am for same day cut and pickup by 2.30pm

No. We only cut across the width of the roll once.

To enable speed to market we have all specifications in pre-cut 2 m rolls in 1245mm wide and 10m rolls in widths above 1550mm which are ready to be dispatched upon order.

We accept payment via PayPal or direct deposit EFT. We have a strict policy of not taking credit card details over the phone

Absolutely, we welcome you to use your own freight company.

If we receive your order before 9am, it will be dispatched on same day.

WELDED MESH

5 lineal metres and increments of 5 lineal metres

WOVEN MESH

1245mm wide – 2 lineal metres and increments of 1 lineal metre
1550mm wide – 10 lineal metres and increments of 10 lineal metres
1830mm wide – 10 lineal metres and increments of 10 lineal metres

We have a datasheet for each product item, these include a to scale image, specifications, dimensions and weights. These are found on the website in the far right column of the product tables. We also include a link to the relevant datasheet in all quotes, proformas and invoices.

Stainless Woven Mesh Terminology

Mesh – The number of openings per lineal inch.

SWG – Standard wire gauge

Aperture- The distance between two adjacent wires

Diameter- The thickness of the wire before weaving

Pitch- The distance between the middle point of two adjacent wires or the sum of the aperture width and the wire diameter.

% Open Area- The ratio of the area of the aperture to the area of the mesh expressed in percentage terms

Weft- All wires running across the cloth as woven

Stainless Woven Mesh Formulas

Aperture

Calculating the aperture

  1. Count of a convenient number of apertures (N)
  2. Measure the length covered by the N apertures (L)
  3. Measure the wire diameter (D)
  4. The average aperture (A)

calculating-woven-wire-mesh-aperture

Working example of calculating the aperture of 6/20 woven wire mesh

  1. Number of apertures counted N = 6
  2. Length covered by apertures centre to centre L = 25.4mm
  3. Diameter of wire D = 0.9mm
  4. Aperture

calculating-aperture

The woven wire is identified as 3.33mm aperture / 0.9mm diameter



Mesh Count
calculating-mesh-count-1

Percentage Open Area
calculating-open-area

The mesh has a 62% open area



Micron Conversion



Micron (micrometer) is a unit of measure, in which usually only fine mesh under 1mm is referred to. A micron us a thousandth of a millimetre.

In this example 325/48.5, 0.043mm aperture, 0.035mm diameter is used.

micron-conversion-3



Plain Weave



The most common and simplest weaves.Each warp wire (wire running parallel to the length of the cloth) passes alternatively over and under the wires running transversly through the cloth at 90 degree angles.
Intercrimp Weave



Has extra crimps in warp and weft wires between intersections.

Lock Crimp Weave



Is produced with pre-crimped wire. Lock crimp weave is stabilised by a notch or bump at the wire intersections.

 Twill Weave

twill-weave

Is Produced by passing each fill wire alternatively over and under two warp wires.

Stainless Steel
Woven Mesh Calculations

  • Mesh Count
  • Wire Diam mm
  • Aperture mm
  • Open Area %
  • Weight Squ m
  • Micron (if Aperture =< 1)
