How is stainless steel reinforcing mesh a more sustainable material than carbon steel?

It will help. When using Stainless Steel in reinforced concrete it will significantly improve the asset life, lower maintenance costs and use less concrete. All of these factors have a positive effect on the environment by: Reduce the total weight of the building and therefore the footing size Reduce the amount of lime required and therefore reduce the amount of energy and CO2 produced Reduce the number of trucks on the road throughout the building supply chain All of these initiatives are important and when selecting Stainless Steel as your reinforcement steel you are lowering emissions.

What are the factors for good concrete?

There are many dynamics occurring between the concrete, the reinforcing mesh and the environment. For concrete to last all the components have to come together and work together Concrete needs to have: The right chemistry to protect the reinforcing mesh Few cracks to prevent moisture ingress The right granularity to provide the right strength/grade Concrete installation practices need: Sufficient cover Good mixing Good compaction & laying Curing regime The Environment needs to be: Free from contamination that impacts the pH Dry to prevent the migration of ions in ground water The temperature during curing needs to be right If one of the above factors was to fall outside the desired range then the life of the concrete will be reduced.

What is concrete cancer?

Concrete Cancer is the term used to describe the failure of the concrete as the reinforcing steel corrodes. The mechanism is: Concrete due to its porosity absorbs moisture and gases Moisture and gases accumulate and move through the concrete The moisture and gases change the chemistry of the concrete The concrete chemistry (pH) changes and the steel is unprotected from corrosion The moisture and gases reach the steel and corrosion starts Steel is converted to its oxide (rust) The steel oxide takes up more volume than the steel and this causes internal compressive forces Concrete begins to crack due to the compressive forces of the corroding steel inside Concrete spalls and falls away exposing even more concrete and steel Concrete and steel increase the failure mechanism and corrosion accelerates This is considered the “vicious circle of corrosion”

What are the properties of the concrete that contribute to concrete Cancer?

Concrete is a material that has been selected to provide strength at a cost. The following are some of the downsides of concrete: Porous and allows moisture into the structure and this moisture can carry chloride ions Contains lime and the lime absorbs CO2 from the atmosphere (Carbonation) Formulation is important to provide its properties but relies on people to make it to the specific formulae Performance is a function of the curing conditions

Why do people select Stainless Steel over Mild Steel Mesh?

The properties of Stainless Steel are significantly superior when it comes to corrosion protection over mild steel these include: Better corrosion resistance to different environments No need to provide protective coatings as Stainless Steel has a natural protective coating that self-repairs Don’t need chemical additives in the concrete to prevent corrosion

Why should I consider Stainless Steel as a reinforcing Mesh?

The following are some reasons why you would use Stainless Steel as your reinforcing Mesh If you are looking for long asset life with low maintenance costs If you can’t afford for your concrete to fail (safety critical infrastructure) or it is too costly to maintain (Offshore windfarms) If the area is polluted and you can remove this from the soil (Tunnelling projects) If you are wanting to use less concrete

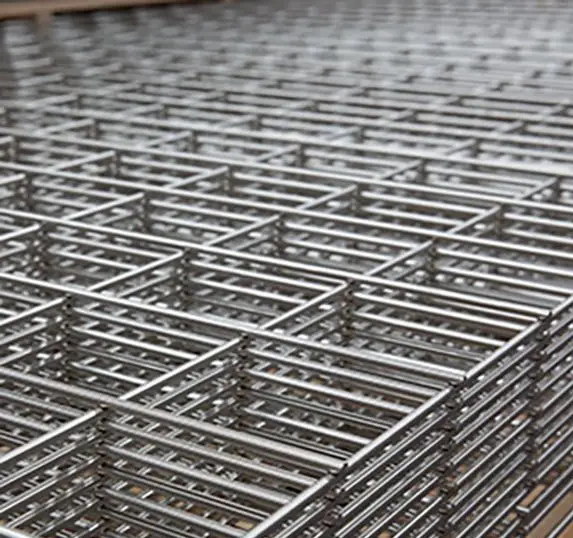

stainless steel reinforcing mesh product 2

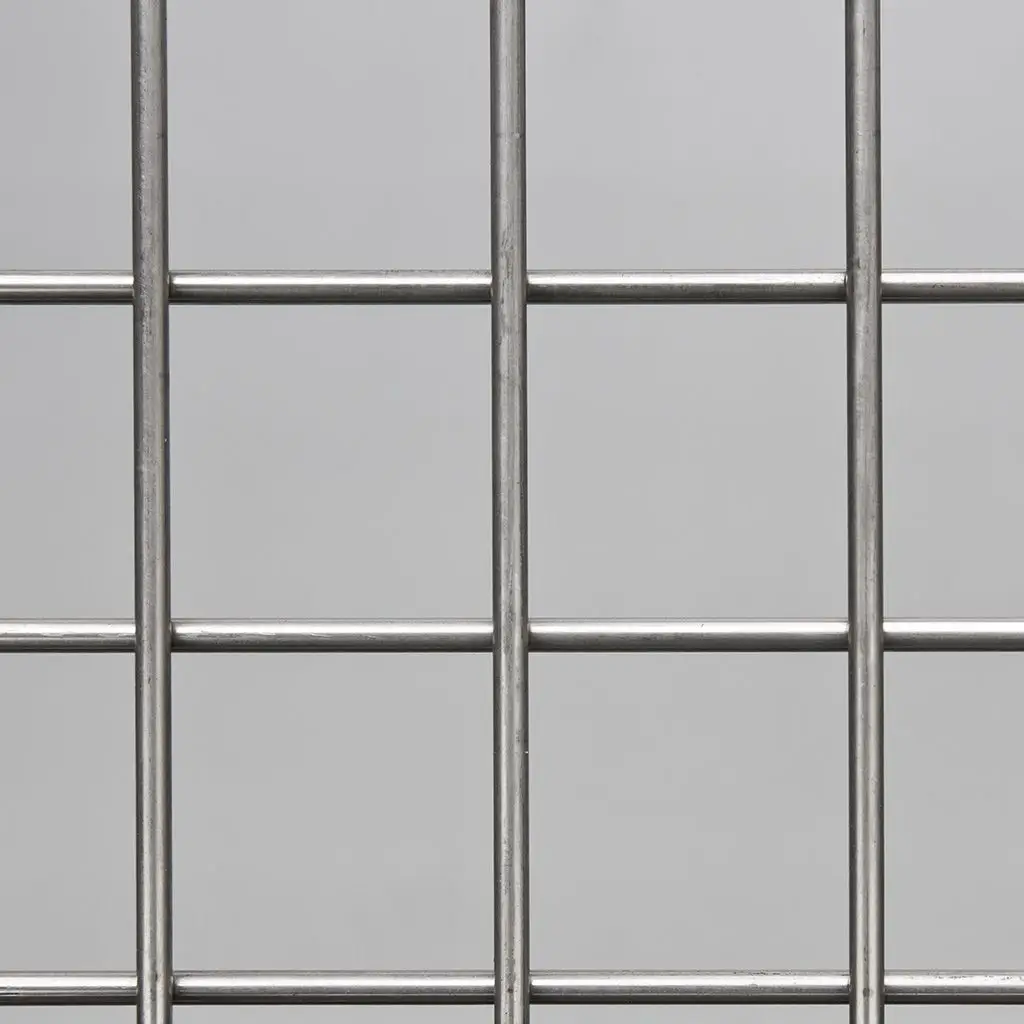

stainless steel reinforcing mesh product 5

stainless steel reinforcing mesh product 1

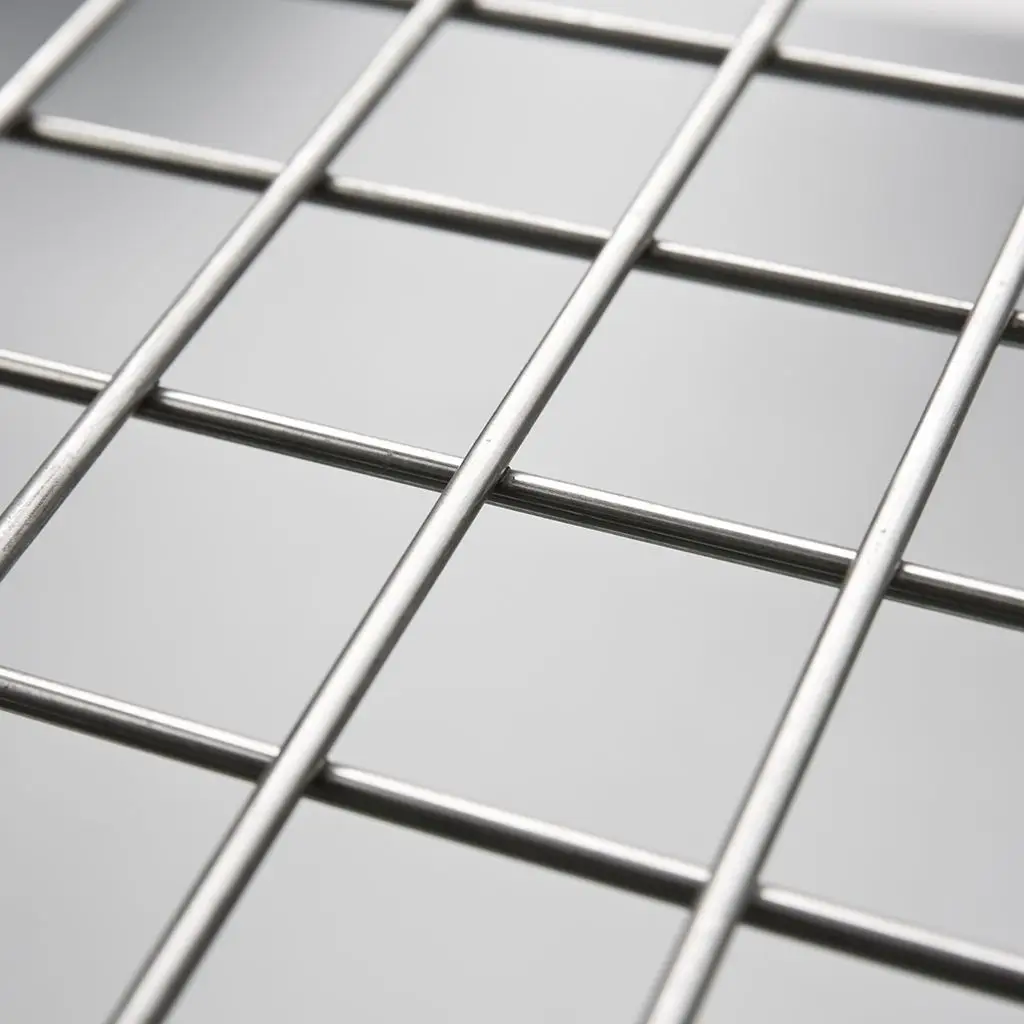

stainless steel reinforcing mesh product 4

In stock

Parent Code: SSWP

Reinforcing Mesh

Stainless Steel Reinforcing Mesh is the optimum solution for reinforcing mesh in corrosive environments, critical structures and infrastructure.

Stainless steel reinforcing mesh will provide long term performance and extend the life of reinforced concrete structures and infrastructure.

Common Applications

Commonly used for corrosive environments, that require a long life and when future maintenance life is difficult:

Bridges
Tunnels
Piers
Docks
Sea Walls
Structures in splash zones

SSWM Stocked Reinforcing Mesh Range

We stock a range of stainless steel welded mesh panels 2400 x 1200mm in grade 316L and 2205 Duplex. Custom size panels are also available.

Quality Assured & Tested

Same Day Despatch

Australia's Largest Stockist

Mesh

50mm to 200mm

Wire Diam

5mm to 8mm

Grade

316L & Duplex 2205

Length x Width

2400mm x 1200mm

Condition / Finish

Mill also known as off the machine

Welded Mesh Terminology

Mesh – The distance between two adjacent parallel wires, measured from centre to centre of the wires.

Diameter – Thickness of the wire before processing.

Stainless Steel Vs Traditional Carbon Steel Reo:

Stainless steel provides a more sustainable choice than traditional carbon steel reo, benefits include:

✔Corrosion resistant (prevents chloride induced corrosion)

✔Concrete cover can be reduced

✔Concrete sealant can be eliminated

✔Maintenance and repair costs reduced

✔Easy to handle, bend & weld and can withstand damage during construction

✔Cost effective choice for when future maintenance or access is difficult

✔Overall reduced life cycle costing

COMPARISON TABLE – REINFORCING MESH

Salt Water Environment

Corrosion Resistant

Less concrete cover*

Life Cycle Costing Sustainable

CARBON STEEL

X

STAINLESS STEEL 304

X

STAINLESS STEEL 316

dry (no splash)

STAINLESS STEEL 316L

splash zone

STAINLESS STEEL DUPLEX 2205

fully immersed

*Greater concrete cover is required with galvanised reinforcing mesh to protect it from corroding

COMPARISON TABLE – REINFORCING MESH

CARBON STEEL

Salt Water Environment

X

Corrosion Resistant

X

Less concrete cover*

X

Life Cycle Costing Sustainable

X

STAINLESS STEEL 304

Salt Water Environment

X

Corrosion Resistant

Less concrete cover*

Life Cycle Costing Sustainable

STAINLESS STEEL 316

Salt Water Environment

dry (no splash)

Corrosion Resistant

Less concrete cover*

Life Cycle Costing Sustainable

STAINLESS STEEL 316L

Salt Water Environment

splash zone

Corrosion Resistant

Less concrete cover*

Life Cycle Costing Sustainable

STAINLESS STEEL DUPLEX 2205

Salt Water Environment

fully immersed

Corrosion Resistant

Less concrete cover*

Life Cycle Costing Sustainable

*Greater concrete cover is required with galvanised reinforcing mesh to protect it from corroding

Are the traditional industry Product Specifications available?
In short the answer is yes. We have developed this handy product specifications table to make your specification easy:

INDUSTRY PRODUCT NAME

Product Code

Grade

Long Wire

Cross Wire

Approx Mass
Kg / Panel

Pack Size

SSL50.5-500

SSWP 050 x 050 5.00 1206L

316 L

5.00 @ 50

18.3

25 SSL51-500

SSWP 100×100 5.00 1206L

316 L

5.00 @ 100

9.4

25 SSWP 100×100 5.00 1205D

2205 Duplex

5.00 @ 100

9.2

25 SSL61-500

SSWP 100 x 100 6.00 1206L

316 L

5.00 @ 100

13.5

25 SSWP 100 x 100 6.00 1205D

2205 Duplex

5.00 @ 100

13.2

25 SSL81-500

SSWP 100 x 100 8.00 1206L

316 L

8.00 @ 100

24.0

25 SSL61.5-500

SSWP 150 x 150 6.00 1206L

316 L

6.00 @ 150

9.4

25 SSL62-500

SSWP 200 x 200 x 6.00 1206L

316 L

6.00 @ 200

7.1

25

All panels are 2400 x 1200mm.

INDUSTRY PRODUCT NAME

SSL50.5-500

Product Code

SSWP 050 x 050 5.00 1206L

Grade

316 L

Long Wire

5.00 @ 50

Cross Wire

5.00 @ 50

Approx Mass Kg / Panel

18.3 Pack Size

25 INDUSTRY PRODUCT NAME

SSL51-500

Product Code

SSWP 100×100 5.00 1206L

SSWP 100×100 5.00 1205D

Grade

316 L

2205 Duplex

Long Wire

5.00 @ 100

Cross Wire

5.00 @ 100

Approx Mass Kg / Panel

9.4

9.2 Pack Size

25 INDUSTRY PRODUCT NAME

SSL61-500

Product Code

SSWP 100 x 100 6.00 1206L

SSWP 100 x 100 6.00 1205D

Grade

316 L

2205 Duplex

Long Wire

6.00 @ 100

Cross Wire

6.00 @ 100

Approx Mass Kg / Panel

13.5

13.2 Pack Size

25 INDUSTRY PRODUCT NAME

SSL81-500

Product Code

SSWP 100 x 100 8.00 1206L

Grade

316 L

Long Wire

8.00 @ 100

Cross Wire

8.00 @ 100

Approx Mass Kg / Panel

24.0 Pack Size

25 INDUSTRY PRODUCT NAME

SSL61.5-500

Product Code

SSWP 150 x 150 6.00 1206L

Grade

316 L

Long Wire

6.00 @ 150

Cross Wire

6.00 @ 150

Approx Mass Kg / Panel

9.4 Pack Size

25 INDUSTRY PRODUCT NAME

SSL62-500

Product Code

SSWP 200 x 200 x 6.00 1206L

Grade

316 L

Long Wire

6.00 @ 200

Cross Wire

6.00 @ 200

Approx Mass Kg / Panel

7.1 Pack Size

25

All panels are 2400 x 1200mm.

Still have questions?

Stainless Steel REINFORCING MESH

Stainless Steel Welded Mesh

2400 x 1200mm Panels

	PARENT CODE	MESH MM	WIRE DIAMETER MM	DATA SHEET LINK	REQUEST A QUOTE

Note: To prevent damage while in transit all stainless steel welded panels will be delivered on a non-returnable skid.

Australia’s largest stockist of Stainless Steel Wire & Mesh
We have the largest and most comprehensive Australian stock holding of stainless steel wire and mesh in our purpose laid out warehouse with over: 25 Stainless Steel Welded Mesh specifications in 1200 x 2400mm panels.

Design & Install Considerations
Practical information for your consideration.

Care & Maintenance
Stainless steel is a low maintenance material, but not maintenance free. Refer to our CARE page for further information.

Speed to Market
Same day despatch when your order is received by 9am for Australia wide delivery.

Stainless Steel
Woven Mesh Calculations

Mesh Count
Wire Diam mm

Aperture mm
Open Area %
Weight Squ m
Micron (if Aperture =< 1)

SSWM supplies Stainless Steel that meets the Chemical Composition of BS 6744 and the Mechanical and Dimensional properties of AS 4671. We are able to supply several different grades for different applications for your environment.

Yes. The current Australian Standard for Steel Reinforcing Materials AS/NZS 4671:2001 states Stainless Steel as a material is out of scope but this doesn’t mean it cannot be used. The latest Australian Standard for Maritime Structures, Guidelines for the design of maritime structures AS 4997 does reference Stainless Steel as a suitable material to be used and references the British Standards BS6744 when it comes to reinforced concrete. There are other Standards (ASTM A1022) that support the use of different grades for different applications.

It will help. When using Stainless Steel in reinforced concrete it will significantly improve the asset life, lower maintenance costs and use less concrete. All of these factors have a positive effect on the environment by:

Reduce the total weight of the building and therefore the footing size
Reduce the amount of lime required and therefore reduce the amount of energy and CO₂ produced
Reduce the number of trucks on the road throughout the building supply chain

All of these initiatives are important and when selecting Stainless Steel as your reinforcement steel you are lowering emissions.

The cover thickness of concrete over carbon steel takes into consideration the following:

The porosity of the concrete
The chemistry of the concrete
The environment where the concrete will be installed

The thickness of the concrete cover is calculated by looking at the absorption rate of the moisture and gases through the concrete and the designed asset life. Because the Stainless Steel is not affected by the moisture and gases, a reduced thickness of cover is allowable. In all cases the industry guidelines show that more concrete cover is required in an environment where there is greater exposure to chlorine ions.

No. The Concrete Carbonation or the reabsorption of CO₂into concrete is not a corrosion agent for Stainless Steel. When the CO₂ front reaches the steel reinforcement it can pass through. Reabsorption actually improves the strength of the concrete and this has been shown by inspecting ancient mortar on stone buildings.

No. Stainless Steel should be used where there is a known risk of corrosion. It may be used only in the areas within the corrosion zone that has been calculated for the asset life. If the asset is to last 100 years and the known chlorine concentration is X and the porosity of the concrete is Y then Stainless steel should be used within this area where concrete is used.

No. Because the stainless steel doesn’t produce an oxide and rust, therefore there are no internal forces formed inside the concrete. The concrete which is porous still allows moisture and gases to move through its structure but when it reaches the Stainless Steel, these pass by causing no corrosion.

As there are so many moving parts with so many different stakeholders involved it is very difficult to construct reinforced concrete. Because the above factors are hard to control, companies start to play around with different aspects of the build to optimise what they are being measured on. These changes include:

The pH of the concrete using modifiers
Different aggregates/size fractions
Different chemical compositions
Different additives to set the concrete faster
Steel coatings to protect it from corrosion
Corrosion protection using active and passive protection

There are many dynamics occurring between the concrete, the reinforcing mesh and the environment. For concrete to last all the components have to come together and work together

Concrete needs to have:
- The right chemistry to protect the reinforcing mesh
- Few cracks to prevent moisture ingress
- The right granularity to provide the right strength/grade
Concrete installation practices need:
- Sufficient cover
- Good mixing
- Good compaction & laying
- Curing regime
The Environment needs to be:
- Free from contamination that impacts the pH
- Dry to prevent the migration of ions in ground water
- The temperature during curing needs to be right

If one of the above factors was to fall outside the desired range then the life of the concrete will be reduced.

Concrete Cancer is the term used to describe the failure of the concrete as the reinforcing steel corrodes. The mechanism is:

Concrete due to its porosity absorbs moisture and gases
Moisture and gases accumulate and move through the concrete
The moisture and gases change the chemistry of the concrete
The concrete chemistry (pH) changes and the steel is unprotected from corrosion
The moisture and gases reach the steel and corrosion starts
Steel is converted to its oxide (rust)
The steel oxide takes up more volume than the steel and this causes internal compressive forces
Concrete begins to crack due to the compressive forces of the corroding steel inside
Concrete spalls and falls away exposing even more concrete and steel
Concrete and steel increase the failure mechanism and corrosion accelerates

This is considered the “vicious circle of corrosion”

Concrete is a material that has been selected to provide strength at a cost. The following are some of the downsides of concrete:

Porous and allows moisture into the structure and this moisture can carry chloride ions
Contains lime and the lime absorbs CO₂ from the atmosphere (Carbonation)
Formulation is important to provide its properties but relies on people to make it to the specific formulae
Performance is a function of the curing conditions

The properties of Stainless Steel are significantly superior when it comes to corrosion protection over mild steel these include:

Better corrosion resistance to different environments
No need to provide protective coatings as Stainless Steel has a natural protective coating that self-repairs
Don’t need chemical additives in the concrete to prevent corrosion

The following are some reasons why you would use Stainless Steel as your reinforcing Mesh

If you are looking for long asset life with low maintenance costs
If you can’t afford for your concrete to fail (safety critical infrastructure) or it is too costly to maintain (Offshore windfarms)
If the area is polluted and you can remove this from the soil (Tunnelling projects)
If you are wanting to use less concrete

We have a datasheet for each product item, these include a to-scale image, specifications, dimensions and weights. These are found on the website in the far right column of the product tables. We also include a link to the relevant datasheet in all quotes, proformas and invoices.

WELDED MESH

5 lineal metres and increments of 5 lineal metres

WOVEN MESH

1245mm wide – 2 lineal metres and increments of 1 lineal metre 1550mm wide – 10 lineal metres and increments of 10 lineal metres 1830mm wide – 10 lineal metres and increments of 10 lineal metres

If we receive your order before 9am, it will be dispatched on same day.

Absolutely, we welcome you to use your own freight company.

We accept payment via PayPal or direct deposit EFT. We have a strict policy of not taking credit card details over the phone

No. We only cut across the width of the roll once. To enable speed to market, we have all specifications in pre-cut 2 m rolls in 1245mm wide and 10m rolls in widths above 1550mm, which are ready to be dispatched upon order.

Please place your woven wire orders that require cutting by 11am for same day cut and pickup by 2.30pm

Please do, to enable us to assist you with your enquiry and requirements without distractions.

Our opening hours are 8.30am – 3.30pm Monday to Friday

Our stocked size for stainless steel welded panels is 1200 x 2400mm However, for large volumes, panels can be custom-made

On a double skid for interstate and country deliveries, no double skid is usually required for local deliveries or local pickups.

Yes, please either send or bring your mesh in for identification. If emailing a photo, please ensure it is against a ruler, so we can identify the mesh count and wire diameter.

Yes, as our name suggests, we sell only Stainless Steel Wire & Mesh.

Relevant Products

Cabinet / Joinery Mesh

Parent Code: SSWO / SSWOB

SSWM Cabinet & Joinery Mesh provides designers and fabricators with a premium…

Pool Mesh

Parent Code: SSWO / SSWOB

SSWM Pool Mesh is specifically designed to withstand harsh outdoor and coastal…

Balustrade / Screening Mesh

Parent Code: SSWO / SSWOB

SSWM Balustrade & Screening Mesh is engineered for architectural applications that require…

Why Choose SSWM

Same Day Despatch

Quality assured & tested

Australia's largest stockist of stainless steel wire & mesh

Design & install considerations

Low maintenance material

COMPLIMENTARY PRODUCT CONSULTATION

Speak with a product expert regarding your project

SAME DAY DESPATCH
when your order is received
by 9am for Australia wide delivery

TRUSTED BY 1000+
BUSINESSES AROUND AUSTRALIA

We’ve been supporting local manufacturing and infrastructure projects for over 20 years.

I started dealing with SSWM in 2019 and have always found them to be informative, trusting and dependable suppliers. Many times Sam has gone out of his way to make sure we receive the product on time and have found SSWM’s attitude professional and always wanting to help out.

Convoluted Technologies Pty Ltd

Michael Burgess

Remarkable company to deal with. Order updates were excellent, and everything went as planned from the start. The team was cheerful and knowledgeable, and they had the products we needed. Supply lead times exceeded expectations. Highly recommended.

Stratco

Ross Ewings

We have been dealing with SSWM for over 9 years. SSWM stock holding is always reliable and ready for us to pick up that day! We have a great strategic relationship and value the referrals that we receive from SSWM.

PPT Engineering Pty Ltd

Paul Jeffery

We are a family business and we love dealing with another family business- SSWM. Andrew Greer likes to tell me “we can dance on our feet” and it’s very true SSWM are incredibly responsive, with a great range and are very customer focused.

Morgana & Sons Pty Ltd

Ben Morgana

We recently renovated a rural property and installed Stainless Steel Bushfire Mesh. The SSWM team were a pleasure to deal with helpful and efficient. We now have a fantastic product installed and I would have no hesitations in recommending SSWM.

ROOF SAFETY

WINDOW AND DOOR

FIXTURES & FITTINGS

PERFORATED

ROOF SAFETY

WINDOW AND DOOR

ARCHITECTURAL

FIXTURES & FITTINGS

Parent Code: SSWP

Reinforcing Mesh

Common Applications

SSWM Stocked Reinforcing Mesh Range

Quality Assured & Tested

Same Day Despatch

Australia's Largest Stockist

Mesh

Wire Diam

Grade

Length x Width

Condition / Finish

Welded Mesh Terminology

Stainless Steel Vs Traditional Carbon Steel Reo:

COMPARISON TABLE – REINFORCING MESH

Salt Water Environment

Corrosion Resistant

Less concrete cover*

Life Cycle Costing Sustainable

CARBON STEEL

X

X

X

X

STAINLESS STEEL 304

X

STAINLESS STEEL 316

dry (no splash)

STAINLESS STEEL 316L

splash zone

STAINLESS STEEL DUPLEX 2205

fully immersed

COMPARISON TABLE – REINFORCING MESH

CARBON STEEL

Salt Water Environment

X

Corrosion Resistant

X

Less concrete cover*

X

Life Cycle Costing Sustainable

X

STAINLESS STEEL 304

Salt Water Environment

X

Corrosion Resistant

Less concrete cover*

Life Cycle Costing Sustainable

STAINLESS STEEL 316

Salt Water Environment

dry (no splash)

Corrosion Resistant

Less concrete cover*

Life Cycle Costing Sustainable

STAINLESS STEEL 316L

Salt Water Environment

splash zone

Corrosion Resistant

Less concrete cover*

Life Cycle Costing Sustainable

STAINLESS STEEL DUPLEX 2205

Salt Water Environment

fully immersed

Corrosion Resistant

Less concrete cover*

Life Cycle Costing Sustainable

INDUSTRY PRODUCT NAME

Product Code

Grade

Long Wire

Cross Wire

Approx Mass Kg / Panel

Approx Mass
Kg / Panel
