Stainless steel is the optimum solution for your general purpose welded mesh panels. By selecting stainless steel you will utilise the numerous benefits including:
Long term performance
Life cycle costing
Low environmental impact

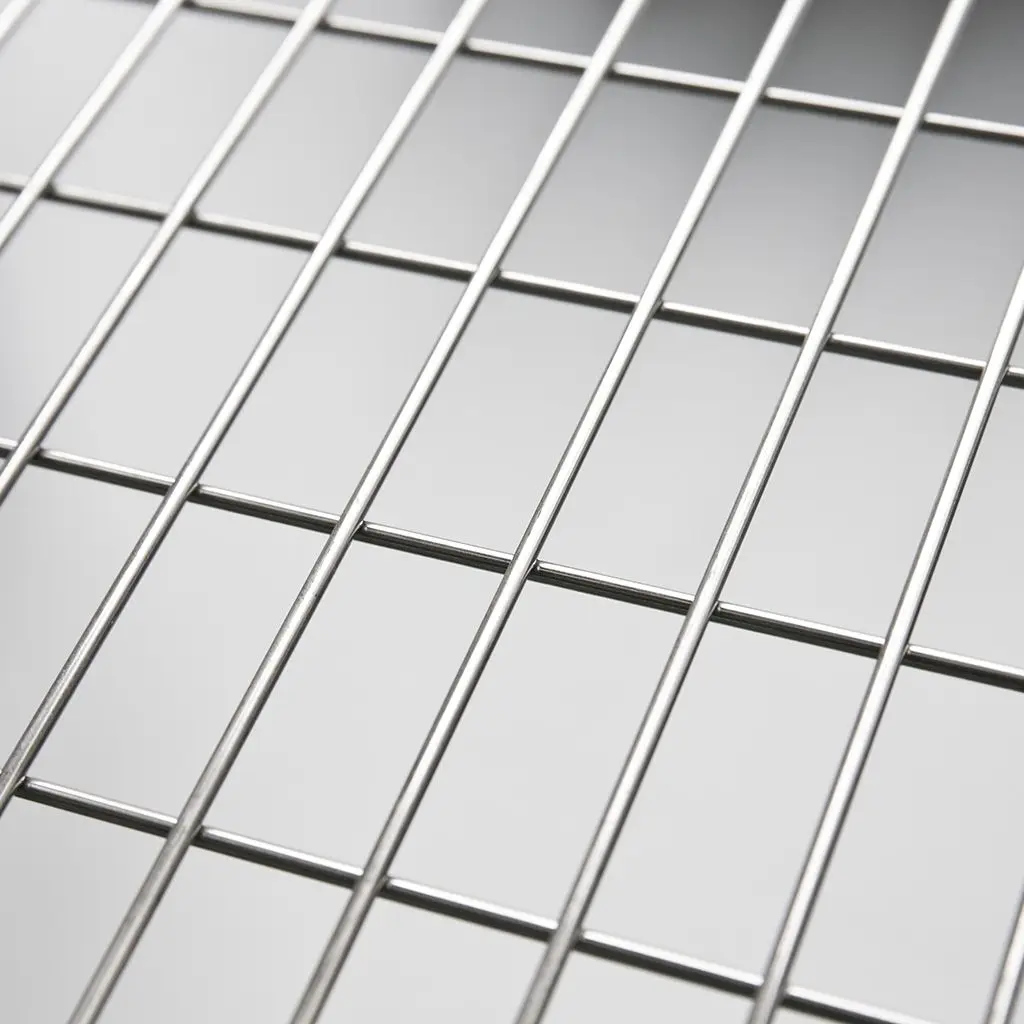

Stainless steel welded mesh is manufactured by the longitudinal and transverse wires being resistance welded together.
SSWM general purpose stocked stainless steel welded panels and custom made stainless steel welded panels are available and commonly used for:
Stocked Product Specifications ready for same day despatch
Mesh 25mm to 200mm
Wire Diam 2.5mm to 8mm
Grade 304 & 316
Length x Width 2400mm x 1200mm
Finish Mill also known as off the machine
Length x Width 3000mm x 1200mm
Australia’s largest stockist of Stainless Steel Wire & Mesh
We have the largest and most comprehensive Australian stock holding of stainless steel wire and mesh in our purpose laid out warehouse with over: 25 Stainless Steel Welded Mesh specifications in 1200 x 2400mm panels.
Design & Install Considerations
Practical information for your consideration.
Stocked Stainless Steel General Purpose Welded Wire Mesh Panels 1200mm x 2400mm
|Product Code||Mesh mm||Wire Diameter mm||Approx Weight Kg||Grade||Data Sheet Link||Request a Quote|
|SSWP 025x025 2.50 1204||25 x 25||2.50||9.2||304|
|SSWP 025x025 2.50 1206||25 x 25||2.50||9.2||316|
|SSWP 025x025 3.00 1204||25 x 25||3.00||12.9||304|
|SSWP 025x025 3.00 1206||25 x 25||3.00||12.9||316|
|SSWP 025x050 3.00 1206||25 x 50||3.00||9.7||316|
|SSWP 040x040 3.00 1204||40 x 40||3.00||8.1||304|
|SSWP 040x040 3.00 1206||40 x 40||3.00||8.1||316|
|SSWP 040x040 4.00 1204||40 x 40||4.00||14.7||304|
|SSWP 040x040 4.00 1206||40 x 40||4.00||14.7||316|
|SSWP 050x050 3.00 1204||50 x 50||3.00||6.5||304|
|SSWP 050x050 3.00 1206||50 x 50||3.00||6.5||316|
|SSWP 050x050 4.00 1204||50 x 50||4.00||11.7||304|
|SSWP 050x050 4.00 1206||50 x 50||4.00||11.7||316|
|SSWP 050x050 5.00 1204||50 x 50||5.00||18.3||304|
|SSWP 050x050 5.00 1206||50 x 50||5.00||18.3||316|
|SSWP 050x075 5.00 1204||50 x 75||5.00||15.3||304|
|SSWP 075x013 4.00 1206||75 X 13||4.00||26||316|
|SSWP 100x100 3.00 1204||100 x 100||3.00||3.4||304|
|SSWP 100x100 3.00 1206||100 x 100||3.00||3.4||316|
|SSWP 100x100 5.00 1204||100 x 100||5.00||9.4||304|
|SSWP 100x100 5.00 1206||100 x 100||5.00||9.4||316|
|SSWP 100x100 6.00 1204||100 x 100||6.00||13.5||304|
|SSWP 100x100 6.00 1206||100 x 100||6.00||13.5||316|
|SSWP 100x100 8.00 1206||100 x 100||8.00||24||316|
|SSWP 150x150 6.00 1206||150 x 150||6.00||9.4||316|
|SSWP 200x200 6.00 1206||200 x 200||6.00||7.1||316|
Note: To prevent damage while in transit all stainless steel welded panels will be delivered on a non-returnable skid.
Stainless Steel Welded Panels- More Information
Welded Mesh Vs Woven Mesh
Welded wire mesh typically has larger openings than woven wire mesh. The wires are welded at each intersection giving the mesh strength and the capability of maintaining its integrity under stress. The popularity of welded mesh is increasing as it can be cut and formed with relative ease.
Welded Mesh terminology
Mesh- The distance between two adjacent parallel wires, measured from centre to centre of the wires.
Diameter-Thickness of the wire
Stocked and custom made welded wire mesh panels
We carry an extensive range of welded mesh panels. Our stocked panels have a width of 1200mm and length of 2400mm the wire diameter starts at 2.50mm to 6mm and the mesh from 25mm to 200mm. For further information on our stocked welded mesh panels refer to the tables;
For a requirement larger than our stocked panels, custom made panels can be made with a width of up to 2400mm and a length of up to 3000mm.
All our welded panels have edges trimmed (flush).
If you require your panels to be fabricated, we can recommend a fabricator to suit your application.
Welded Mesh Calculations
- Mesh mm
- Diam mm
- Open Area %
- Weight Squ m
